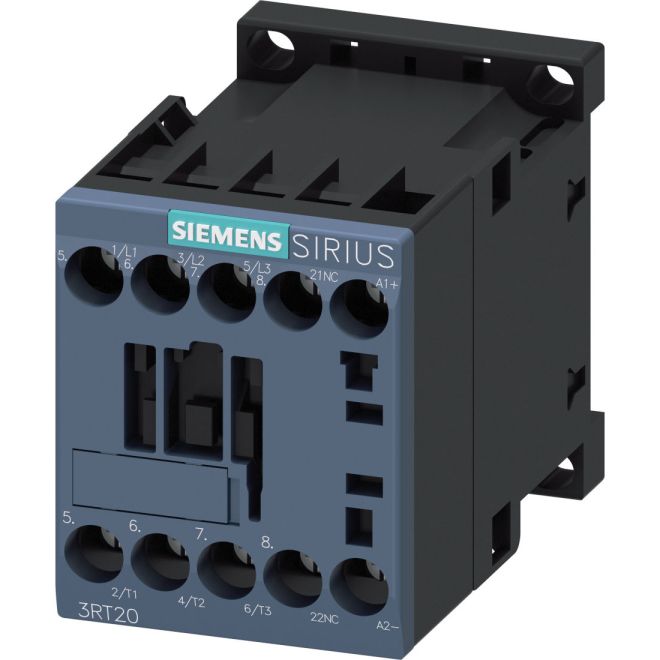

SIEMENS 3RT2018-1FB42 Power Contactors 3-Pole 16A
SKU#:
418103
SIEMENS 3RT2018-1FB42 power contactor, AC-3 16 A, 7.5 kW / 400 V 1 NC, 24 V DC with diode integrated, 3-pole, screw terminals.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RT2018-1FB42 |
| Manufacturer Alternate Number | 3RT20181FB42 |
| UPC | 662643913347 |
| Rated Voltage | 400VAC |
| Coil Voltage | 24VAC |
| Contact Arrangement | 1 N/C + 3 N/O |
| Rated Current | 16A |
| Rated Load (Resistive) | 22 A |
| Number of Poles | 3 |
| Size | Frame S00 |
| Mounting Type | DIN-35 Rail |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Duty Cycles | 30,000,000 |
| IP Rating | IP20 |
| HP | 1-Phase: 1hp at 110VAC/120VAC, 2hp at 230VAC, 3-Phase: 3hp at 200VAC/208VAC, 5hp at 220VAC/230VAC, 10hp at 460VAC/480VAC, 10hp at 575VAC/600VAC |
| Type | Power |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 73mm |
| Weight (lbs) | 0.65 |
| UOM | ea |
