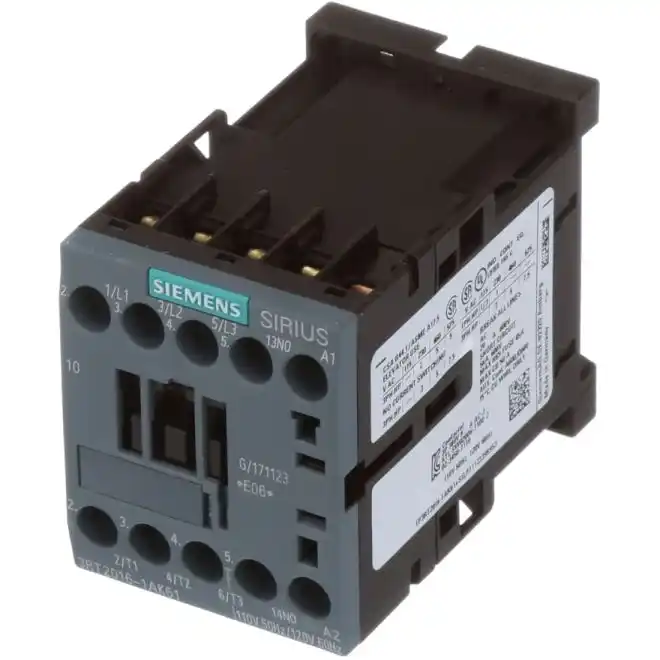

SIEMENS 3RT2016-1AK61 Power Contactors 3-Pole 9A
SKU#:
483873
Contactors are a significant part of safety-related applications. They are generally the actuators that perform the switching operation leading to the safe disconnection of the corresponding application or system. Size S00: an auxiliary contact is integrated in the basic device. Sizes S00 and S0: screw or spring-loaded terminals, spring-loaded terminals with convenient plug-in design for device connectors. SIEMENS 3RT2016-1AK61 contactors fulfill the requirements for environment category A. 3RT2 contactors are available as standard versions with AC or DC operating mechanisms or as versions with a wide-range solid-state operating mechanism and a universal actuating voltage (AC or DC operation possible). All 3RT2 contactors and 3RH2 contactor relays can be retrofitted with RC elements or varistors for damping opening surges in the coil.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RT2016-1AK61 |
| Manufacturer Alternate Number | 3RT20161AK61 |
| UPC | 662643907681 |
| Rated Voltage | 480VAC |
| Coil Voltage | 110VAC - 120VAC |
| Contact Arrangement | 0 N/C + 3 N/O |
| Rated Current | 9A |
| Rated Load (Resistive) | 22 A |
| Number of Poles | 3 |
| Size | Frame S00 |
| Mounting Type | DIN-35 Rail |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Duty Cycles | 30,000,000 |
| IP Rating | IP20 |
| HP | 2hp at 200VAC/208VAC, 3hp at 220VAC/230VAC, 5hp at 460VAC/480VAC |
| Type | Power |
| Height (mm) | 58mm (2.28") |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 73mm |
| Weight (lbs) | 0.50 |
| UOM | ea |
