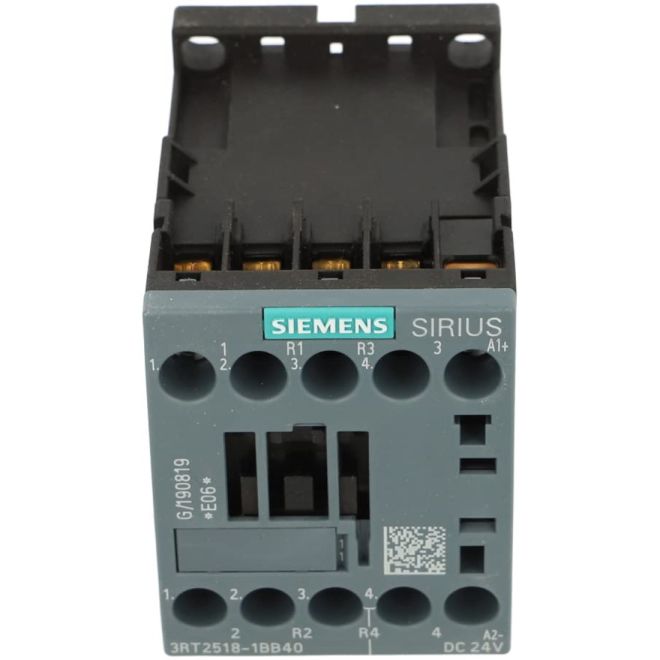

SIEMENS 3RT2518-1BB40 Power Contactors 4-Pole 16A
SKU#:
485469
SIEMENS 3RT2518-1BB40 power contactor AC-3 16 A, 7.5 kW, 400 V 2 NO + 2 NC 24 V DC 4-pole size S00 screw terminals.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 3RT2518-1BB40 |
| Manufacturer Alternate Number | 3RT25181BB40 |
| UPC | 662643916799 |
| Rated Voltage | 400VAC |
| Coil Voltage | 24VDC |
| Contact Arrangement | 2 N/C + 2 N/O |
| Rated Current | 16A |
| Rated Load (Resistive) | 22 A |
| Number of Poles | 4 |
| Size | Frame S00 |
| Mounting Type | DIN-35 Rail |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25°C - +60°C |
| Duty Cycles | 10,000,000 |
| IP Rating | IP20 |
| HP | 1-Phase: 2hp at 230VAC, 3-Phase: 5hp at 460VAC/480VAC |
| Type | Power |
| Height (mm) | 57.5mm |
| Width (mm) | 45mm |
| Depth (Length) (mm) | 73mm |
| Weight (lbs) | 0.65 |
| UOM | ea |
