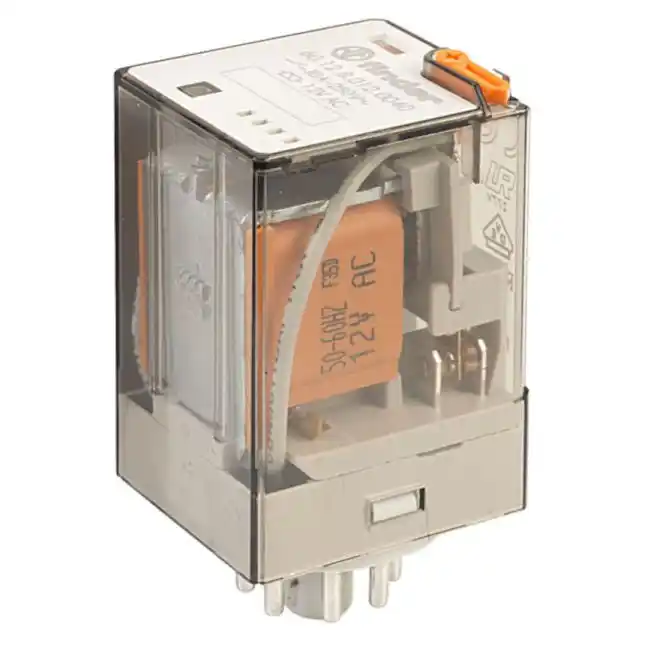

finder 60.12.8.012.0040 Plug-in 2-Pole Relay
SKU#:
126215
Finder 60.12.8.012.0040 is a 10A 2-pole (2P) general purpose electromechanical 8/11 pin plug-in relays, 2CO (DPDT - Double pole double throw), 12V AC coil, lockable test button and mechanical indicator. This general purpose relay is compatible with 90 series sockets. Finder 60.12.8.012.0040 is comparable to TE Connectivity Schrack Potter & Brumfield CAD11A10/012, KRPA-11AG-12, Sky Electronics SKKP-2C-12VAC.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 60.12.8.012.0040 |
| UPC | 8012823042657 |
| Coil Voltage | 12VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in, 8 Pin (Octal) |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 10A |
| Max. Switching Power(Resistive) | 2,500VA |
| Max. Switching Power (Inductive) | 500VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 66.8mm |
| Width (mm) | 36.4mm |
| Depth (Length) (mm) | 32.5mm |
| Weight (lbs) | 0.17 |
| UOM | ea |
