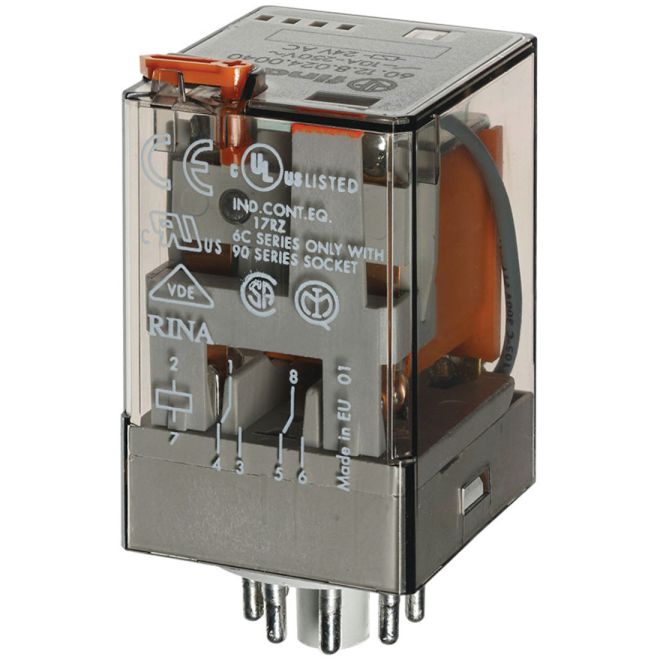

finder 60.12.8.024.0040 Plug-in 2-Pole Relay
SKU#:
126217
Finder 60.12.8.024.0040 is a 10A 2-pole (2P) general purpose electromechanical 8/11 pin plug-in relays, 2CO (DPDT - Double pole double throw), 24V AC coil, lockable test button and mechanical indicator. This general purpose relay is compatible with 90 series sockets. Finder 60.12.8.024.0040 is comparable to IDEC RR2P-UAC24V, TE Connectivity Potter & Brumfield Schrack KRPA-11AG-24, MR206024S, CAD11A10/24, Schneider Square D 8501KP12V14.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 60.12.8.024.0040 |
| UPC | 8012823042893 |
| Coil Voltage | 24VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in, 8 Pin (Octal) |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 10A |
| Max. Switching Power(Resistive) | 2,500VA |
| Max. Switching Power (Inductive) | 500VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 66.8mm |
| Width (mm) | 36.4mm |
| Depth (Length) (mm) | 32.5mm |
| Weight (lbs) | 0.17 |
| UOM | ea |
