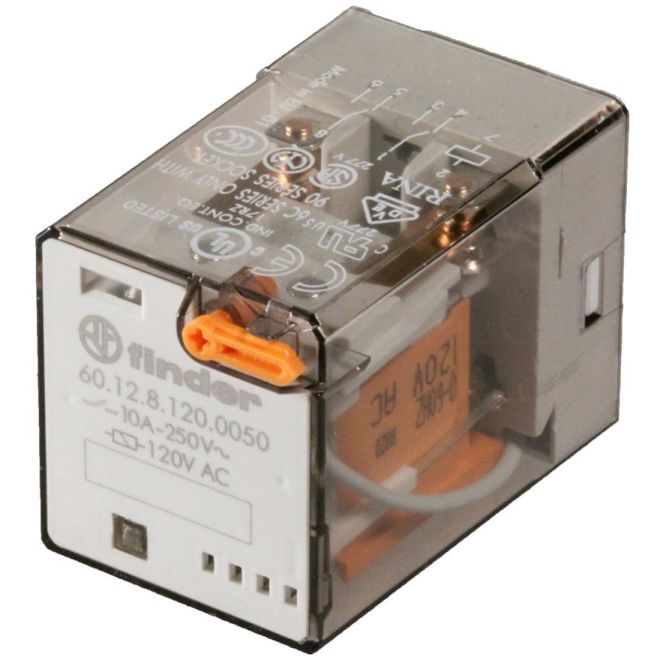

finder 60.12.8.120.0050 Plug-in 2-Pole Relay
SKU#:
126223
Finder 60.12.8.120.0050 is a 10A 2-pole (2P) general purpose electromechanical 8/11 pin plug-in relays, 2CO (DPDT - Double pole double throw), 120V AC coil, lockable test button and LED. This general purpose relay is compatible with 90 series sockets. Finder 60.12.8.120.0050 is comparable to TE Connectivity Schrack MR208110, Omron MK2PN-S-AC120, Eaton Cutler Hammer D3PR23A, IDEC RR2P-ULAC120V, Carlo Gavazzi RCP8002, Siemens 3TX7112-1LF13.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 60.12.8.120.0050 |
| UPC | 8012823043739 |
| Coil Voltage | 120VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in, 8 Pin (Octal) |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Test Button | Yes |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 10A |
| Max. Switching Power(Resistive) | 2,500VA |
| Max. Switching Power (Inductive) | 500VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 66.8mm |
| Width (mm) | 36.4mm |
| Depth (Length) (mm) | 32.5mm |
| Weight (lbs) | 0.17 |
| UOM | ea |
