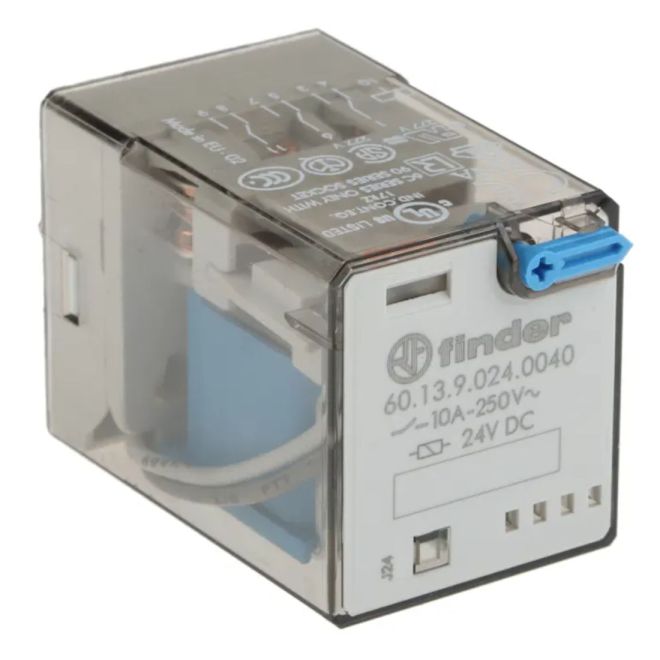

finder 60.13.9.024.0040 Plug-in 3-Pole Relay
SKU#:
126232
Finder 60.13.9.024.0040 is a 10A 3-pole (3P) general purpose electromechanical 8/11 pin plug-in relays, 3CO (3PDT - Three pole double throw), 24V DC coil, lockable test button and mechanical indicator. This general purpose relay is compatible with 90 series sockets. Finder 60.13.9.024.0040 is comparable to TE Connectivity Potter & Brumfield Schrack MR301024S, MR303024, CAD14D10-24VDC, KRP14DG-24VDC, Relpol Altech R15-2013-23-1024-WT, TURCK Releco C3-A30X/24VDC.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 60.13.9.024.0040 |
| UPC | 8012823050775 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 3PDT (3 Form C) |
| Terminal Type | Plug-in, 11 Pin (Octal) |
| Mounting Type | Base/Socket |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 10A |
| Max. Switching Power(Resistive) | 2,500VA |
| Max. Switching Power (Inductive) | 500VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 66.8mm |
| Width (mm) | 36.4mm |
| Depth (Length) (mm) | 32.5mm |
| Weight (lbs) | 0.18 |
| UOM | ea |
