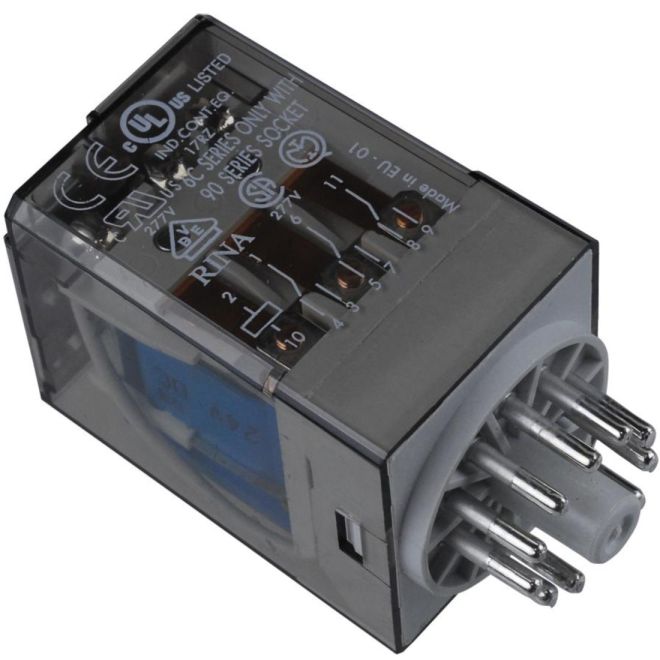

finder 60.13.9.024.0060 Plug-in 3-Pole Relay
SKU#:
318496
Finder 60.13.9.024.0060 is a 10A 3-pole (3P) general purpose electromechanical 8/11 pin plug-in relays, 3CO (3PDT - Three pole double throw), 24V DC coil, LED and diode (DC, polarity positive to pin 2). Finder 60.13.9.024.0060 general purpose relay is compatible with 90 series sockets.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 60.13.9.024.0060 |
| UPC | 8012823050911 |
| Coil Voltage | 24VDC |
| Contact Arrangement | 3PDT (3 Form C) |
| Terminal Type | Plug-in, 11 Pin (Octal) |
| Mounting Type | Base/Socket |
| Indicator | LED |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 20 A |
| Rated Current | 10A |
| Max. Switching Power(Resistive) | 2,500VA |
| Max. Switching Power (Inductive) | 500VA |
| Minimum Load | 500mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 66.8mm |
| Width (mm) | 36.4mm |
| Depth (Length) (mm) | 32.5mm |
| Weight (lbs) | 0.18 |
| UOM | ea |
