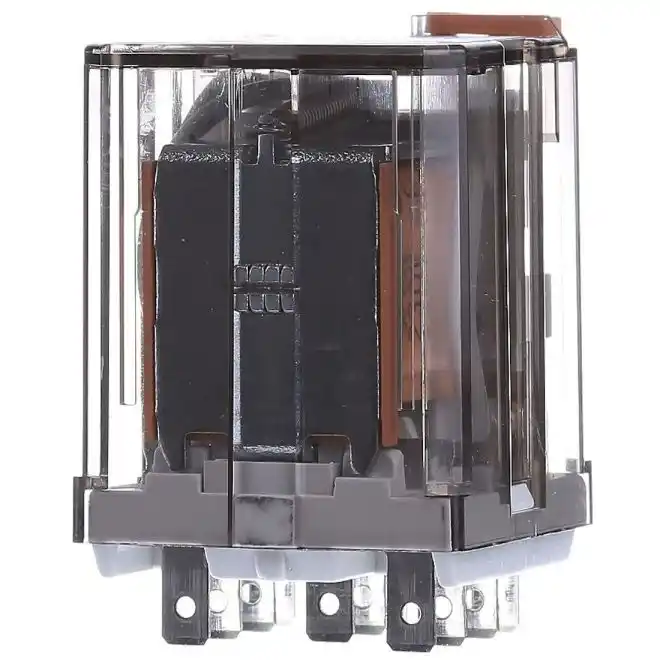

finder 62.32.8.006.0040 Plug-in 2-Pole Relay

Finder 62.32.8.006.0040 are 16A industrial power relays (magnetic blow-out for increased DC breaking capacity) for high current DC loads such as, motors, circuit breakers, electromagnets and electromagnetic valves. Finder 62 series electromechanical power relays are available in 1, 2 or 3 poles with PCB, plug-in (92 series sockets) or Faston 187 (4.8x0.5 mm) with optional mounting adaptors. High insulation between coil and contacts. Cadmium free contact material. Applications include General switchboard installations, industrial automation panels, auxiliary relays, interfacing, versions for applications with special loads. The dual-purpose Finder test button can be used in two ways: The plastic pip (located directly above the test button) remains intact. In this case, when the test button is pushed, the contacts operate. When the test button is released the contacts return to their former state. The plastic pip is broken-off (using an appropriate cutting tool). In this case, (in addition to the above function), when the test button is pushed and rotated, the contacts are latched in the operating state, and remain so until the test button is rotated back to its former position. In both cases ensure that the test button actuation is swift and decisive.
