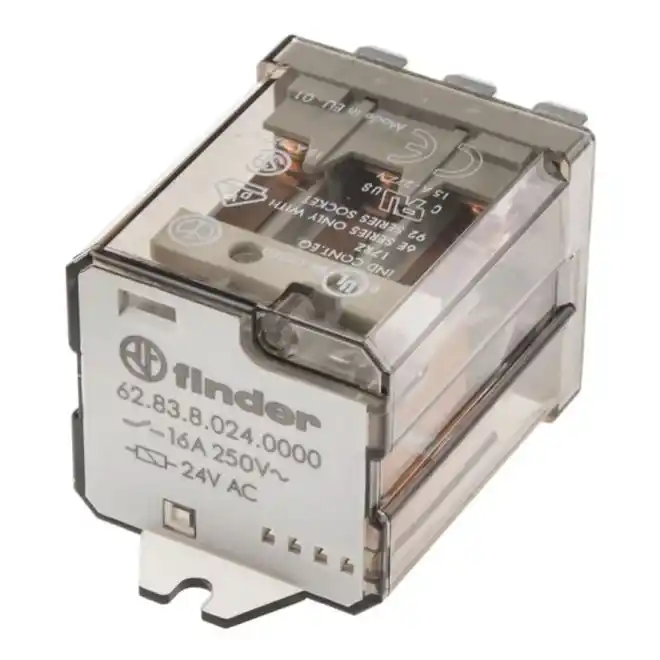

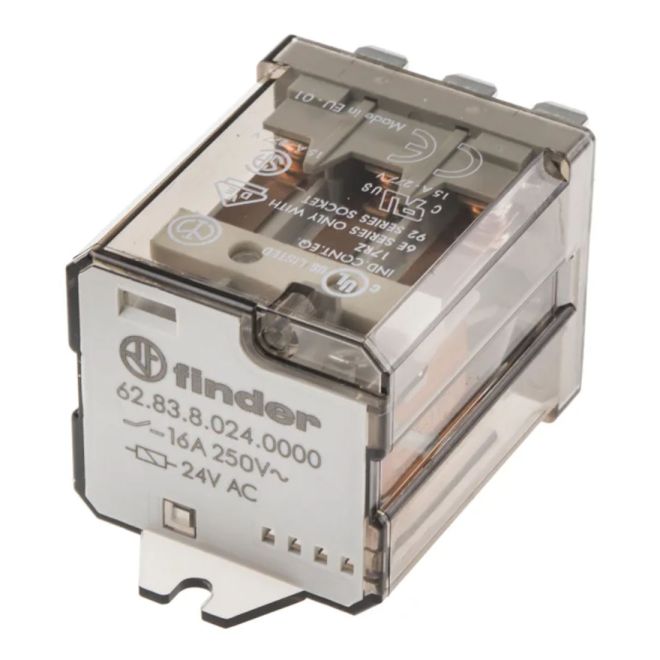

finder 62.83.8.024.0000 Faston 250 3-Pole Relay
SKU#:
159336
Finder 62.83.8.024.0000 is a 16A 3-pole (3P) faston power relay with 24V AC coil. 3CO (3PDT - Three pole double throw) contact configuration, AgCdO (Silver Cadmium Oxide) contact. Reinforced insulation between coil and contacts according to EN 60335-1, with 6mm clearance and 8mm creepage distance. Finder 62.83.8.024.0000 is compatible with 92 series sockets. Applications include general switchboard installations, industrial automation panels, auxiliary relays, interfacing, versions for applications with special loads (e.g. magnetic blow out for control of power distribution switches and circuit breakers).
| Brand | finder |
|---|---|
| Manufacturer Part Number | 62.83.8.024.0000 |
| UPC | 8012823256733 |
| Coil Voltage | 24VAC |
| Contact Arrangement | 3PDT (3 Form C) |
| Terminal Type | Plug-in, Quick Connect |
| Mounting Type | Chassis |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 30 A |
| Rated Current | 16A |
| Max. Switching Power(Resistive) | 4,000 VA |
| Max. Switching Power (Inductive) | 750VA |
| Minimum Load | 1000mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 68mm |
| Width (mm) | 38.2mm |
| Depth (Length) (mm) | 38.2mm |
| Weight (lbs) | 0.05 |
| UOM | ea |
