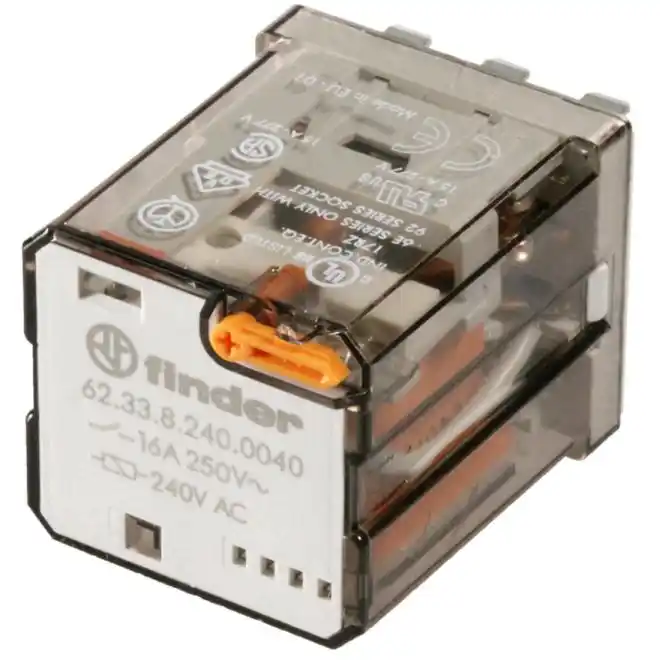

finder 62.33.8.240.0040 Plug-in 3-Pole Relay
SKU#:
210047
Finder 62.33.8.240.0040 is a 16A 3-pole (3P) plug-in power relay with 240V AC coil. 3CO (3PDT - Three pole double throw) contact configuration, AgCdO (Silver Cadmium Oxide) contact. Reinforced insulation between coil and contacts according to EN 60335-1, with 6mm clearance and 8mm creepage distance. Lockable test button and mechanical indicator. Finder 62 series is compatible with 92 series sockets. Applications include general switchboard installations, industrial automation panels, auxiliary relays, interfacing, versions for applications with special loads (e.g. magnetic blow out for control of power distribution switches and circuit breakers). Finder 62.33.8.240.0040 is comparable to Schneider Magnecraft 388JXCXCM-240A, TE Connectivity Tyco Schrack Potter & Brumfield 15733U2L5, 15723U300, KUMP-14A28-240, RM702720S, RM332740, Allen-Bradley 700HB33A2, Finder 62.33.8.240.0010.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 62.33.8.240.0040 |
| UPC | 8012823124445 |
| Coil Voltage | 240VAC |
| Contact Arrangement | 3PDT (3 Form C) |
| Terminal Type | Plug-in, Quick Connect |
| Mounting Type | Chassis |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 30 A |
| Rated Current | 16A |
| Max. Switching Power(Resistive) | 4,000 VA |
| Max. Switching Power (Inductive) | 750VA |
| Minimum Load | 1000mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 55.3mm |
| Width (mm) | 38.2mm |
| Depth (Length) (mm) | 38.2mm |
| Weight (lbs) | 0.05 |
| UOM | ea |
