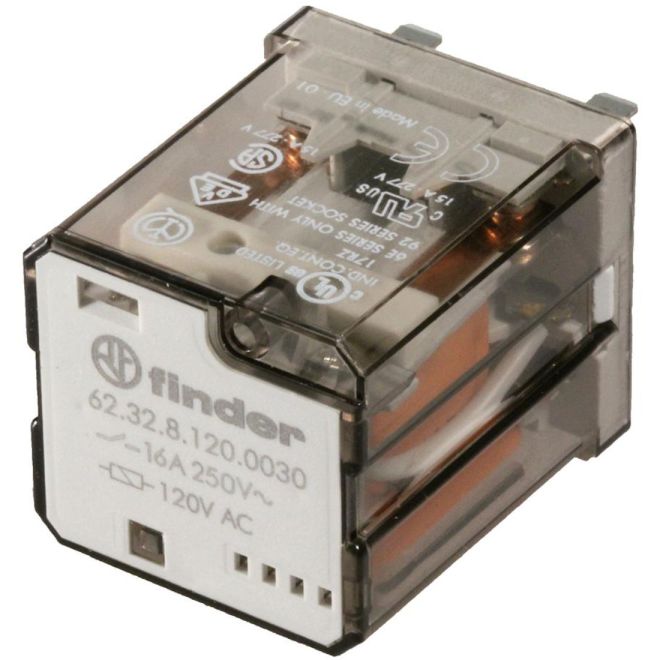

finder 62.32.8.120.0030 Plug-in 2-Pole Relay
SKU#:
149647
Finder 62.32.8.120.0030 is a 16A 2-pole plug-in power relay with 120V AC coil. 2CO (2PDT - Double pole double throw) contact configuration, AgCdO (Silver Cadmium Oxide) contact. Reinforced insulation between coil and contacts according to EN 60335-1, with 6mm clearance and 8mm creepage distance LED. This relay is compatible with 92 series sockets. Applications include general switchboard installations, industrial automation panels, auxiliary relays, interfacing, versions for applications with special loads (e.g. magnetic blow out for control of power distribution switches and circuit breakers). Finder 62.32.8.120.0030 is comparable to TE Connectivity Potter & Brumfield KUP-11A35-120, KUEP-11A15-120, Sky Electronics SKAP-2C-120VAC.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 62.32.8.120.0030 |
| UPC | 8012823102276 |
| Coil Voltage | 120VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in, Quick Connect |
| Mounting Type | Chassis |
| Indicator | LED |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 30 A |
| Rated Current | 16A |
| Max. Switching Power(Resistive) | 4,000 VA |
| Max. Switching Power (Inductive) | 750VA |
| Minimum Load | 1000mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 55.3mm |
| Width (mm) | 38.2mm |
| Depth (Length) (mm) | 38.2mm |
| Weight (lbs) | 0.05 |
| UOM | ea |
