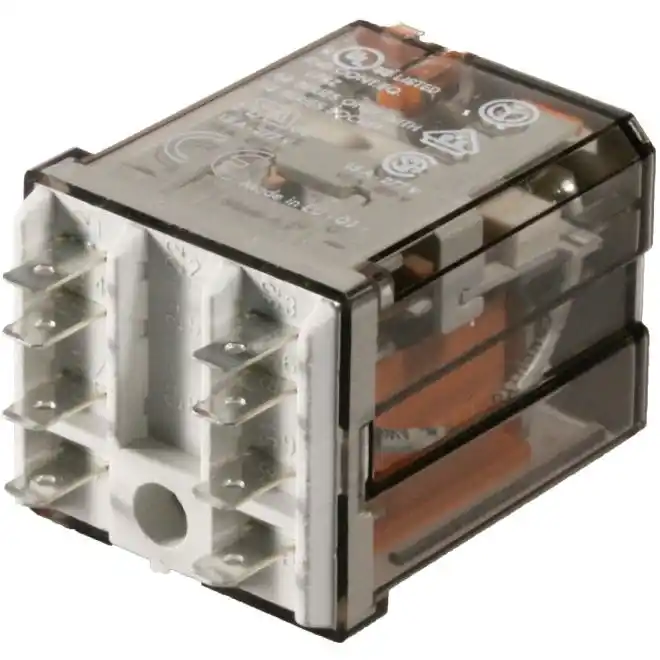

finder 62.32.8.024.0040 Plug-in 2-Pole Relay
SKU#:
263190
Finder 62.32.8.024.0040 is a 16A 2-pole plug-in power relay with 24V AC coil. 2CO (2PDT - Double pole double throw) contact configuration, AgCdO (Silver Cadmium Oxide) contact. Reinforced insulation between coil and contacts according to EN 60335-1, with 6mm clearance and 8mm creepage distance. Lockable test button and mechanical indicator. This relay is compatible with 92 series sockets. Applications include general switchboard installations, industrial automation panels, auxiliary relays, interfacing, versions for applications with special loads (e.g. magnetic blow out for control of power distribution switches and circuit breakers). Finder 62.32.8.024.0040 is comparable to TE Connectivity Potter & Brumfield RM202524S, Finder 62.32.8.024.0010, Deltrol 20307-82, Allen-Bradley 700-HB32A24.
| Brand | finder |
|---|---|
| Manufacturer Part Number | 62.32.8.024.0040 |
| UPC | 8012823123134 |
| Coil Voltage | 24VAC |
| Contact Arrangement | DPDT (2 Form C) |
| Terminal Type | Plug-in, Quick Connect |
| Mounting Type | Chassis |
| Indicator | Mechanical |
| Test Button | Yes |
| Max. Switching Voltage | 400 VAC |
| Max. Switching Current | 30 A |
| Rated Current | 16A |
| Max. Switching Power(Resistive) | 4,000 VA |
| Max. Switching Power (Inductive) | 750VA |
| Minimum Load | 1000mW |
| Operating Temperature | -40°C - +70°C |
| RoHS Compliant | Yes |
| Duty Cycles | 1,000,000 |
| Height (mm) | 55.3mm |
| Width (mm) | 38.2mm |
| Depth (Length) (mm) | 38.2mm |
| Weight (lbs) | 0.05 |
| UOM | ea |
