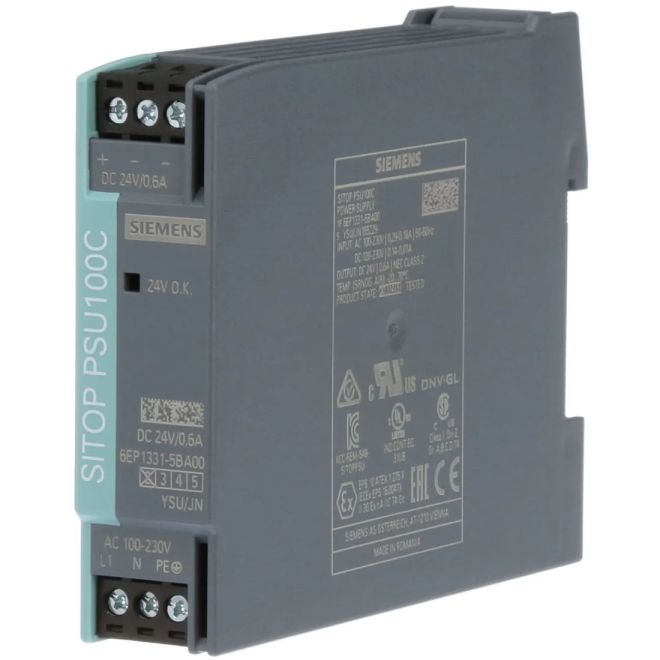

SIEMENS 6EP1331-5BA00 SITOP 24V/0.6A Power Supply
SKU#:
417713
SIEMENS SITOP PSU100C are primary clocked power supplies for connection to a 1-phase AC line supply or to DC power systems. An electronically regulated DC voltage that can be set via a potentiometer is available at the output of the device (not for the devices: 6EP1331-5BA00, 6EP1332-5BA20). The output of the device is isolated, no-load proof and short-circuit proof. The LED display indicates the operating status.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6EP1331-5BA00 |
| Manufacturer Alternate Number | 6EP13315BA00 |
| UPC | 040892692686 |
| Supply Voltage Range | 100VAC - 230VAC, 110VDC - 300VDC |
| Power Phase | 1-Phase |
| Output Voltage DC | 24VDC |
| Output Power | 14W |
| Output Current | 0.6A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Height (mm) | 80mm (3.15") |
| Width (mm) | 23mm |
| Depth (Length) (mm) | 100mm |
| Weight (lbs) | 0.26 |
| UOM | ea |
