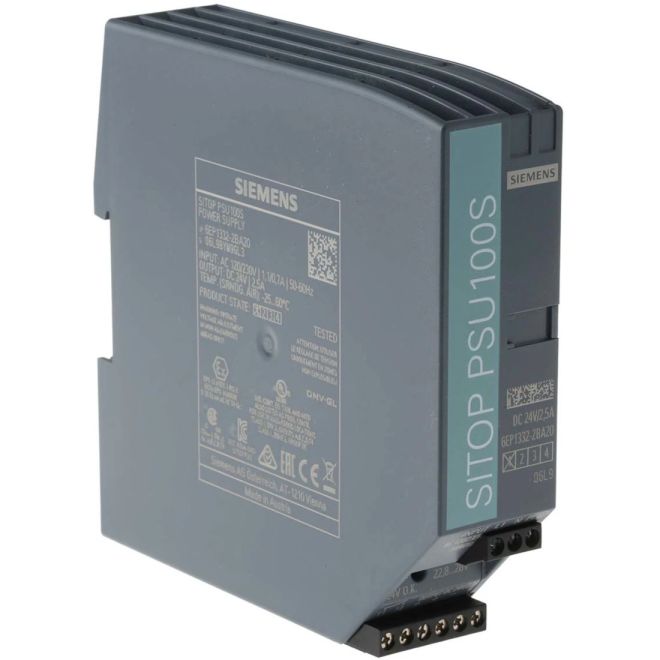

SIEMENS 6EP1332-2BA20 SITOP 24V/2.5A Power Supply
SKU#:
513268
SIEMENS SITOP PSU100S 6EP1332-2BA20 is a primary-clocked power supply for connection to a 1-phase AC line supply. An electronically regulated DC voltage that can be set via a potentiometer is available at the output of the device. The output of the device is isolated, no-load proof and short-circuit proof. The LED display indicates the operating status. The operating state of the device can be processed via the signaling contact.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6EP1332-2BA20 |
| Manufacturer Alternate Number | 6EP13322BA20 |
| UPC | 887621038625 |
| Supply Voltage Range | 120VAC - 230VAC |
| Power Phase | 1-Phase |
| Output Voltage DC | 24VDC |
| Output Power | 60W |
| Output Current | 2.5A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Parallel Operation | Yes |
| Height (mm) | 125mm (4.94") |
| Width (mm) | 33mm |
| Depth (Length) (mm) | 120mm |
| Weight (lbs) | 0.71 |
| UOM | ea |
