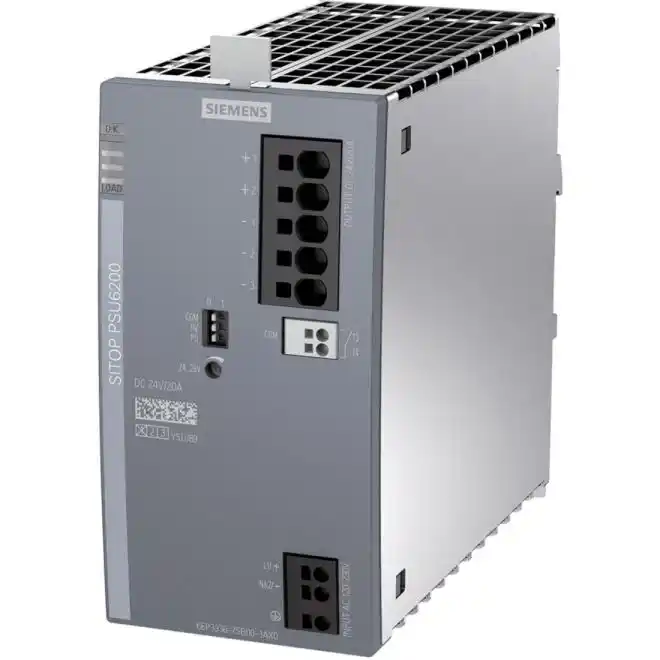

SIEMENS 6EP3336-7SB00-3AX0 24V/20A Power Supply
SKU#:
605051
SIEMENS SITOP PSU6200 6EP3336-7SB00-3AX0 is a primary-clocked power supply for connection to a 1-phase AC line supply and a DC supply. An electronically regulated DC voltage that can be set via a potentiometer is available at the output of the device. The output of the device is isolated, no-load proof and short-circuit proof. The LED display indicates the operating status. The operating state of the device can be processed via the signaling contact.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6EP3336-7SB00-3AX0 |
| Manufacturer Alternate Number | 6EP33367SB003AX0 |
| UPC | 804766818073 |
| Supply Voltage Range | 120VAC - 230VAC, 110VDC - 220VDC |
| Power Phase | 1-Phase |
| Output Voltage DC | 24VDC |
| Output Power | 480W |
| Output Current | 20A |
| Electrical Connection | Push-in Terminals |
| Cooling Type | Natural (Gravity) |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Parallel Operation | Yes |
| Height (mm) | 135mm |
| Width (mm) | 70mm |
| Depth (Length) (mm) | 155mm |
| Weight (lbs) | 3.31 |
| UOM | ea |
