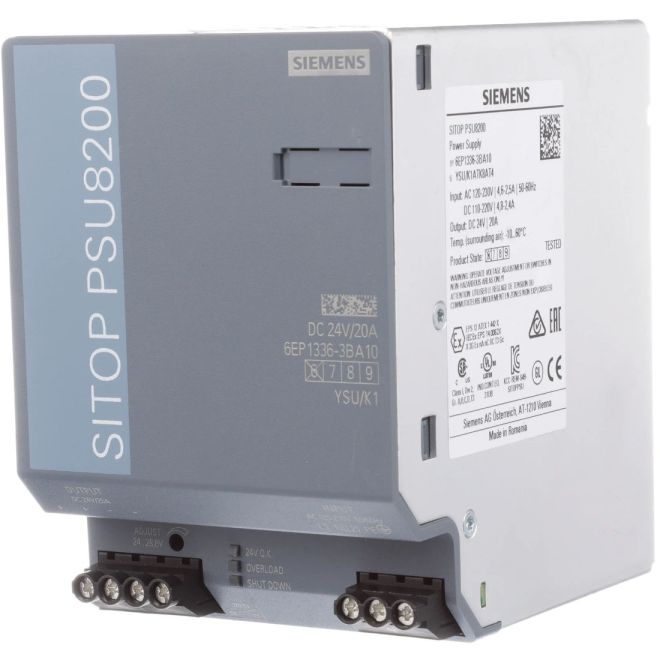

SIEMENS 6EP1336-3BA10 SITOP 24VDC/20A Power Supply
SKU#:
513288
SIEMENS SITOP PSU8200 6EP1336-3BA10 is ideal for complex plants and machines. The wide-range input allows it to be connected to any supply system and also to withstand large voltage fluctuations. The power boost briefly delivers up to three times the rated current. And in the event of an overload, you can choose between constant current with automatic restart or latching shutdown. The high degree of efficiency reduces energy consumption, while the compact metal enclosure saves space.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6EP1336-3BA10 |
| Manufacturer Alternate Number | 6EP13363BA10 |
| UPC | 662643545487 |
| Supply Voltage Range | 120VAC - 230VAC, 110VDC - 220VDC |
| Power Phase | 1-Phase |
| Output Voltage DC | 24VDC |
| Output Power | 480W |
| Output Current | 20A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Mounting Type | DIN Rail |
| Overload Protection | Yes |
| Overvoltage Protection | Yes |
| Parallel Operation | Yes |
| Height (mm) | 125mm (4.94") |
| Width (mm) | 90mm |
| Depth (Length) (mm) | 125mm |
| Weight (lbs) | 2.65 |
| UOM | ea |
