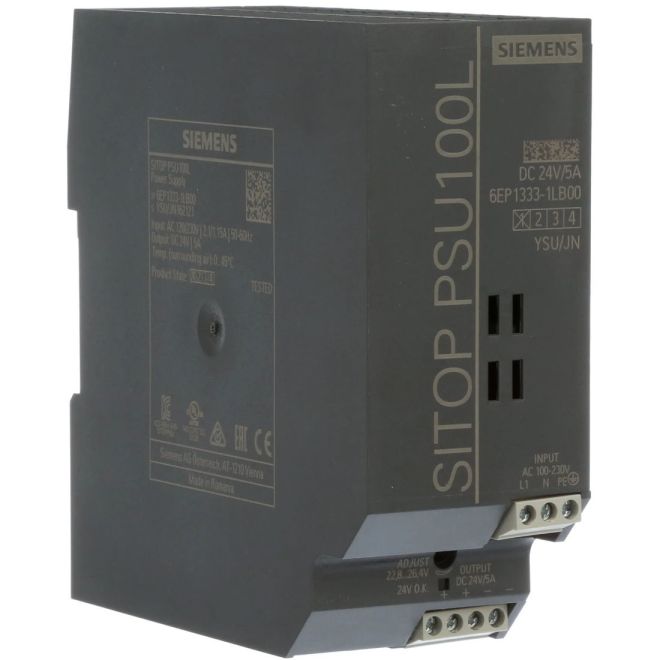

SIEMENS 6EP1333-1LB00 SITOP 24VDC/5A Power Supply
SKU#:
513272
SIEMENS SITOP PSU100L 6EP1333-1LB00 is a primary-clocked power supply for connection to a 1-phase AC line supply. An electronically regulated DC voltage that can be set via a potentiometer is available at the output of the device. The output of the device is isolated, no-load proof and short-circuit proof. The LED display is used to signal the operating state.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6EP1333-1LB00 |
| Manufacturer Alternate Number | 6EP13331LB00 |
| UPC | 040892913439 |
| Supply Voltage Range | 120VAC - 230VAC |
| Power Phase | 1-Phase |
| Output Voltage DC | 24VDC |
| Output Power | 120W |
| Output Current | 5A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Mounting Type | DIN Rail |
| Overvoltage Protection | Yes |
| Parallel Operation | Yes |
| Height (mm) | 125mm (4.94") |
| Width (mm) | 50mm |
| Depth (Length) (mm) | 120mm |
| Weight (lbs) | 1.10 |
| UOM | ea |
