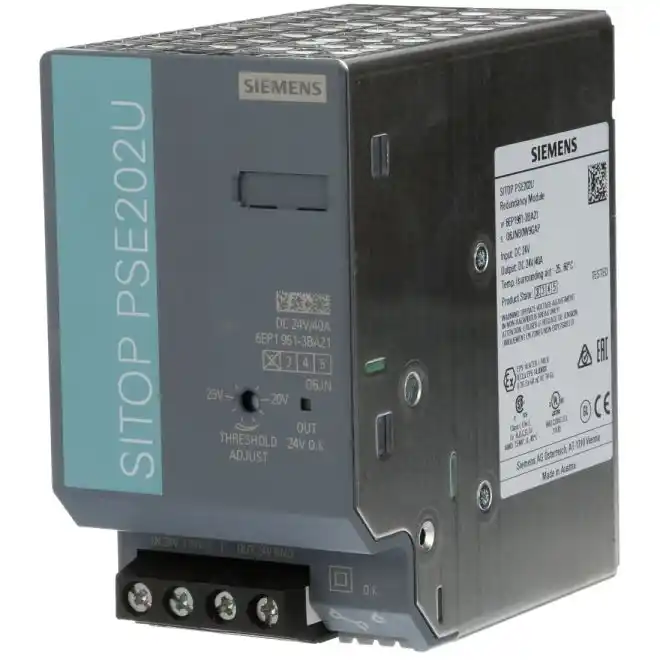

SIEMENS 6EP1961-3BA21 PSE202U Redundancy Module
SKU#:
513324
SIEMENS SITOP PSE202U 6EP1961-3BA21 redundancy modules are the optimum addition to all 24 V power supplies to provide additional protection against failure of the 24 V supply. The redundancy module continuously monitors the feeding power supplies, and when one device fails, the other one automatically takes over the complete 24 V supply. The failure of a 24 V power supply is signaled using an LED and a relay contact. The response threshold for this signal can be set between 20 V and 25 V using a potentiometer on the redundancy module. (when delivered, 20 V) With redundancy module NEC class2, a redundant 24 V power supply can be implemented, where the output power is limited to 100 VA.
| Brand | SIEMENS |
|---|---|
| Manufacturer Part Number | 6EP1961-3BA21 |
| Manufacturer Alternate Number | 6EP19613BA21 |
| UPC | 662643550719 |
| Supply Voltage Range | 24VDC |
| Output Voltage DC | 24VDC |
| Output Current | 40A |
| Electrical Connection | Screw Terminals |
| Cooling Type | Natural (Gravity) |
| Mounting Type | DIN Rail |
| Height (mm) | 125mm (4.94") |
| Width (mm) | 70mm |
| Depth (Length) (mm) | 120mm |
| Weight (lbs) | 1.10 |
| UOM | ea |
