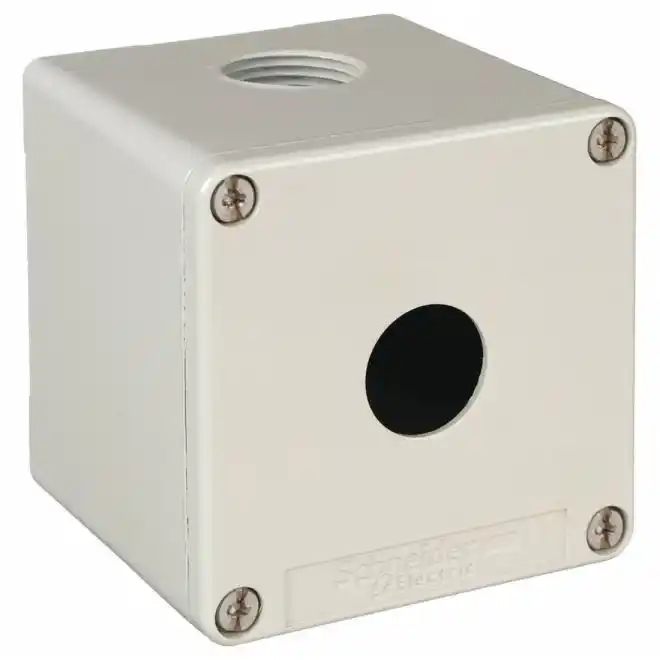

Square D XAP G19501 Die-cast empty control station
SKU#:
93098
Schneider Electric XAPG19501 Harmony XAPG, is a die-cast empty control station. It has 1 cut-out diameter 22mm for 1 function. Designed for industry, Telemecanique box offers operating simplicity, flexibility and robustness. Its protection index is IP65. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product. Square D enclosure provides a zinc alloy grey (RAL 7032) enclosure. It is designed for machines builders (automotive, textile, wood) and services and infrastructures, energy distribution, building, airport. It is compatible with the Harmony XB4 range of control and signaling units.
| Brand | Schneider Electric / Telemecanique / Square D |
|---|---|
| Manufacturer Part Number | XAPG19501 |
| Manufacturer Alternate Number | XAP G19501 |
| UPC | 3389118381902 |
| Material | Die cast zinc |
| Color | Gray RAL 7032 |
| UL Rating Type | NEMA 13, NEMA 4X |
| IP Rating | IP65 |
| Type | Die-cast empty control station |
| Hole Diameter | 22mm |
| Number of Holes | 1 |
| Height (mm) | 80mm (3.15") |
| Width (mm) | 80mm |
| Depth (Length) (mm) | 77mm |
| Weight (lbs) | 1.62 |
| UOM | ea |
