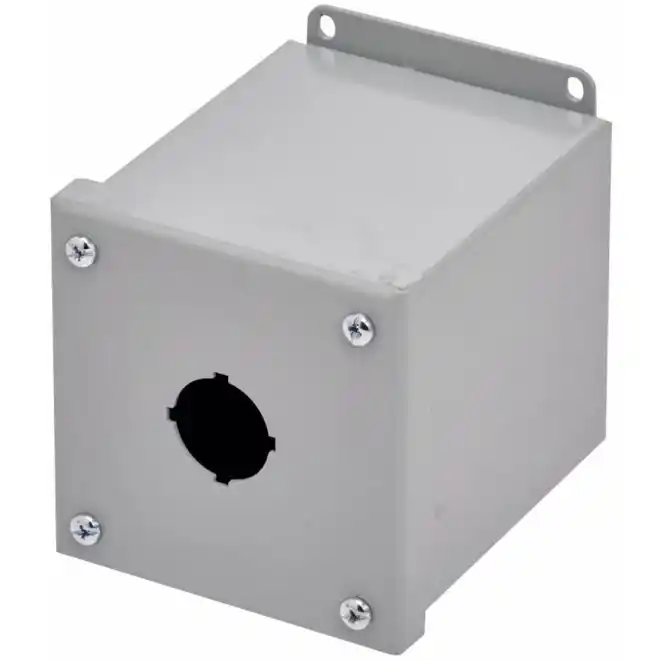

RITTAL 8017685 PB01305X1C 101mm 101mm 120mm Box
SKU#:
366688
Rittal NEMA rated PB series pushbutton box enclosure is designed for indoor use to house commercially available pushbuttons, selector switches, and pilot lights. PB01305X1C enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017685 |
| Manufacturer Alternate Number | PB01305X1C |
| UPC | 639889811751 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4, NEMA 12, NEMA 13 |
| IP Rating | IP55 |
| Supply Includes | Cover Screws, Wall Mounting Bracket, Zinc-Plated Mounting Plate |
| Door Cover Style | Lift-Off |
| Hole Diameter | 30.5mm |
| Number of Holes | 1 Cut-Out |
| Height (mm) | 101mm (4") |
| Width (mm) | 101mm (4") |
| Depth (Length) (mm) | 120mm (4.7") |
| Weight (lbs) | 3.59 |
| UOM | ea |
