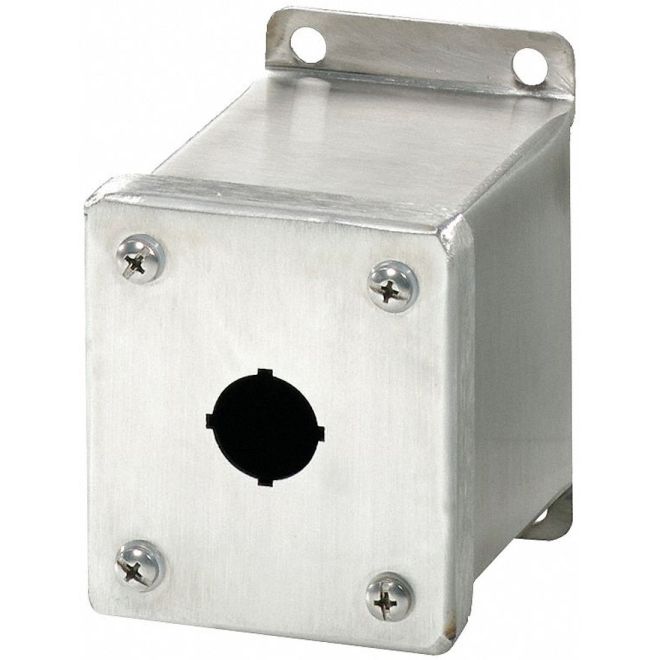

RITTAL 8017725 PB01225M14 82mm 69mm 88mm Box
SKU#:
366678
Rittal NEMA rated PB series pushbutton box enclosure is designed for indoor use to house commercially available pushbuttons, selector switches, and pilot lights. PB01225M14 enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017725 |
| Manufacturer Alternate Number | PB01225M14 |
| UPC | 639889812154 |
| Material | Stainless Steel |
| Surface Finish | Brushed |
| UL Rating Type | NEMA 4X, NEMA 12, NEMA 13 |
| IP Rating | IP55 |
| Supply Includes | Cover Screws, Wall Mounting Bracket |
| Door Cover Style | Lift-Off |
| Hole Diameter | 22.5mm |
| Number of Holes | 1 Cut-Out |
| Height (mm) | 82mm (3.2") |
| Width (mm) | 69mm (2.7") |
| Depth (Length) (mm) | 88mm (3.5") |
| Weight (lbs) | 2.98 |
| UOM | ea |
