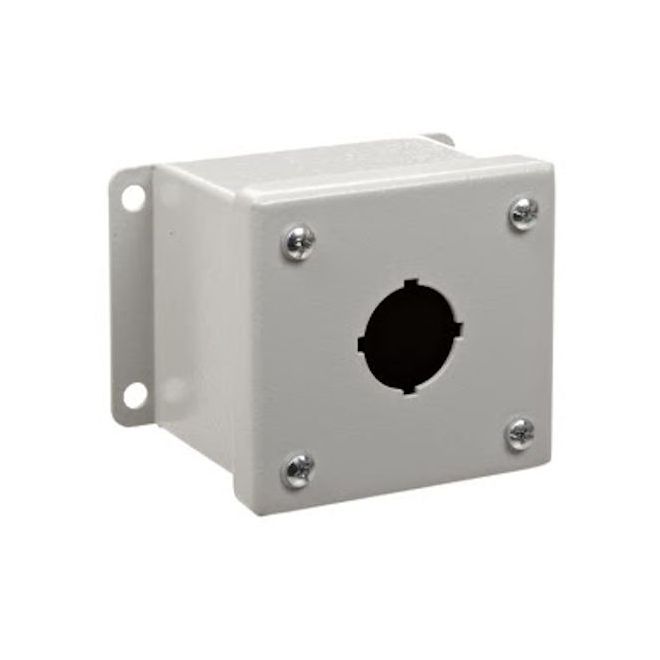

RITTAL 8017645 PB01305S1C 88mm 82mm 69mm Box
SKU#:
346708
Rittal NEMA rated PB series pushbutton box enclosure is designed for indoor use to house commercially available pushbuttons, selector switches, and pilot lights. PB01305S1C enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants. Rittal PB01305S1C is comparable to Hoffman E1PB.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017645 |
| Manufacturer Alternate Number | PB01305S1C |
| UPC | 639889811355 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4, NEMA 12, NEMA 13 |
| IP Rating | IP55 |
| Supply Includes | Cover Screws, Wall Mounting Bracket |
| Door Cover Style | Lift-Off |
| Hole Diameter | 30.5mm |
| Number of Holes | 1 Cut-Out |
| Height (mm) | 88mm (3.5") |
| Width (mm) | 82mm (3.2") |
| Depth (Length) (mm) | 69mm (2.7") |
| Weight (lbs) | 2.4 |
| UOM | ea |
