RITTAL 8017664 PB01225M1C 82mm 69mm 88mm Box
SKU#:
366680

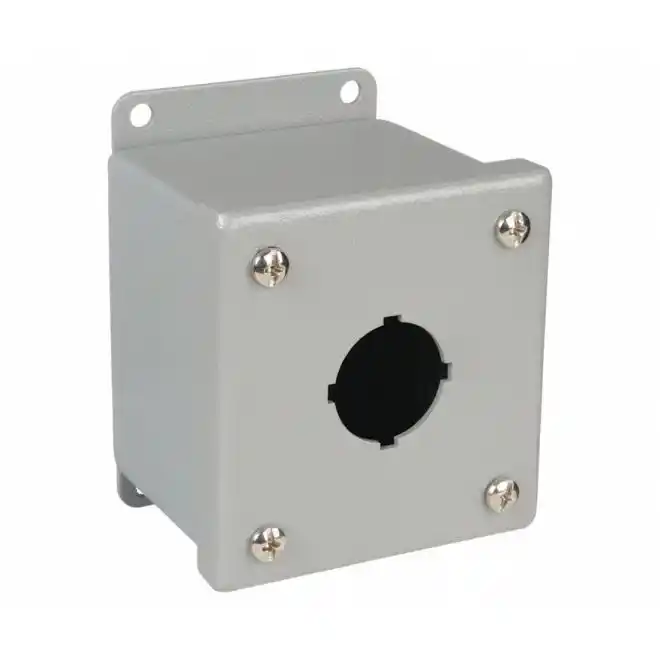

Rittal NEMA rated PB series pushbutton box enclosure is designed for indoor use to house commercially available pushbuttons, selector switches, and pilot lights. PB01225M1C enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants. Rittal PB01225M1C is comparable to Stahlin CF1-PB22, Schneider Electric XAPG19501.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017664 |
| Manufacturer Alternate Number | PB01225M1C |
| UPC | 639889811546 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| UL Rating Type | NEMA 4, NEMA 12, NEMA 13 |
| IP Rating | IP55 |
| Supply Includes | Cover Screws, Wall Mounting Bracket |
| Door Cover Style | Lift-Off |
| Hole Diameter | 22.5mm |
| Number of Holes | 1 Cut-Out |
| Height (mm) | 82mm (3.2") |
| Width (mm) | 69mm (2.7") |
| Depth (Length) (mm) | 88mm (3.5") |
| Weight (lbs) | 2.4 |
| UOM | ea |
