RITTAL 8017714 PB01305S14 88mm 82mm 69mm Box
SKU#:
366683

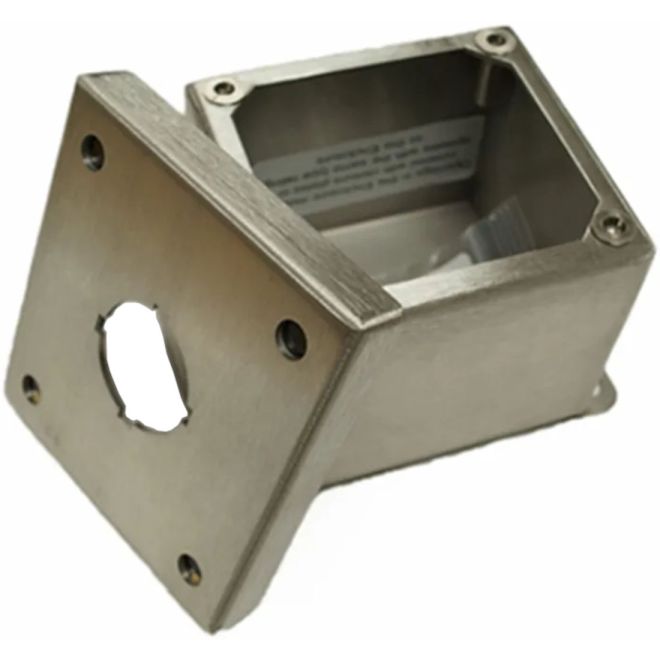

Rittal NEMA rated PB series pushbutton box enclosure is designed for indoor use to house commercially available pushbuttons, selector switches, and pilot lights. PB01305S14 enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants. Rittal PB01305S14 is comparable to Hoffman E1PBSS.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017714 |
| Manufacturer Alternate Number | PB01305S14 |
| UPC | 639889812048 |
| Material | Stainless Steel |
| Surface Finish | Brushed |
| UL Rating Type | NEMA 4X, NEMA 12, NEMA 13 |
| IP Rating | IP55 |
| Supply Includes | Cover Screws, Wall Mounting Bracket |
| Door Cover Style | Lift-Off |
| Hole Diameter | 30.5mm |
| Number of Holes | 1 Cut-Out |
| Height (mm) | 88mm (3.5") |
| Width (mm) | 82mm (3.2") |
| Depth (Length) (mm) | 69mm (2.7") |
| Weight (lbs) | 1.84 |
| UOM | ea |
