RITTAL 8018119 JB040403HC 4" 4" 3" NEMA 4 Box JB
SKU#:
366587

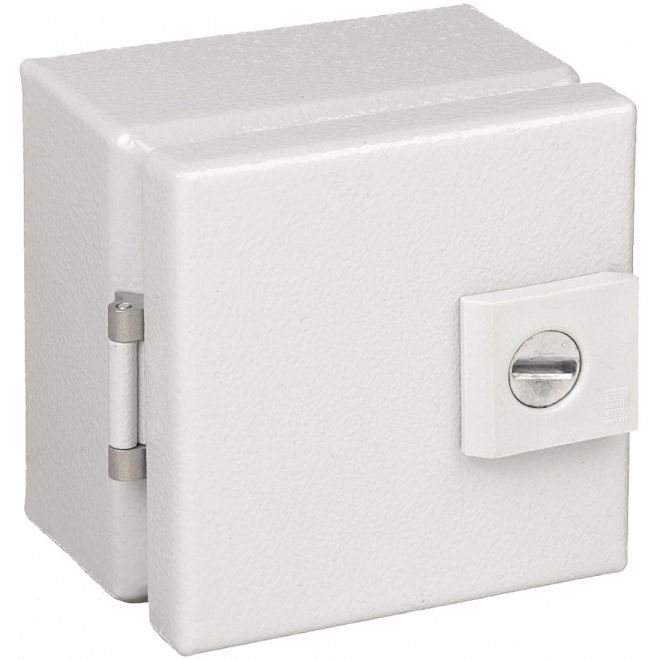

Rittal JB enclosure offers protection for dense wiring and sensitive small instruments. JB040403HC 8018119 hinged cover junction boxes combine the advantages of the AE and KL series at an economical cost. Features include 180 degree hinge and slotted insert quarter turn latch. Foamed-in-place gasket and a knife-edge perimeter add extra protection. Now you can get the industry's highest-quality enclosures in over 100 standard sizes, available in both carbon and stainless steel. Rittal JB040403HC is comparable to Hoffman A404CHNF, Hammond Eclipse EJ443, Ralston Vision IBOH-040403, Eurobex ESCHB040403, Rittal E404CH, E4044CH.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018119 |
| Manufacturer Alternate Number | JB040403HC |
| UPC | 639889832527 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, 180° Hinge Housing with Door |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Latching System | Slotted Insert Quarter Turn Latch |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 100mm (3.9") |
| Width (mm) | 100mm (3.9") |
| Depth (Length) (mm) | 75mm (3") |
| Weight (lbs) | 2.30 |
| UOM | ea |
