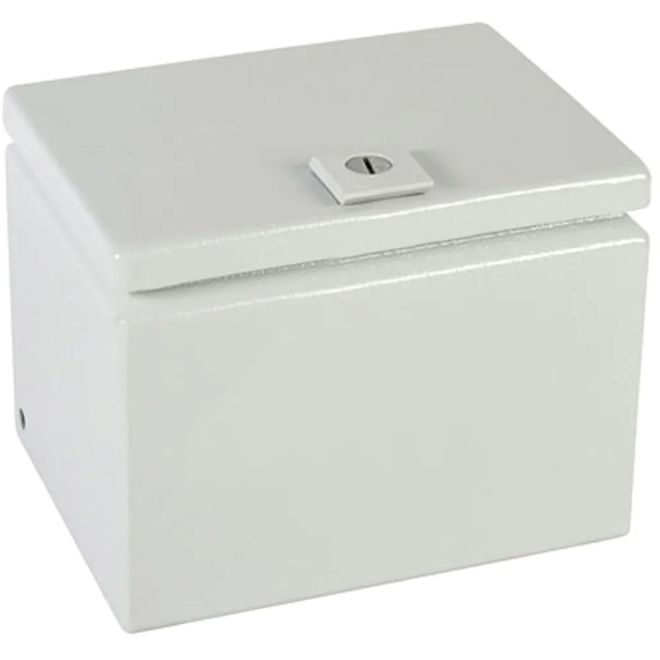

RITTAL 8018123 JB080606HC 8" 6" 6" NEMA 4 Box JB
SKU#:
364360
Rittal JB junction box enclosures provide the protection, flexibility and value that translate to reliable and lasting solutions for today's intensive "return on investment" business approach. Rittal engineers its junction boxes to be the best available anywhere in the world when it comes to form, function and value for the money. Readily available from Bolen's Control House in all of the most popular sizes, protection categories and configurations, unique design features like foamed-in-place gasketing and knife-edge perimeters are examples of Rittal's ability to provide innovative, durable, quality JB080606HC 8018123 enclosure solutions at affordable prices. Rittal JB080606HC is comparable to Hoffman A8066CH, Hammond Eclipse EJ866, Ralston Vision IBOH-080606, Eurobex ESCHB080606, Rittal E 8066NF, E8066CH.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018123 |
| Manufacturer Alternate Number | JB080606HC |
| UPC | 639889832619 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, 180° Hinge Housing with Door |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Latching System | Slotted Insert Quarter Turn Latch |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 200mm (7.9") |
| Width (mm) | 150mm (5.9") |
| Depth (Length) (mm) | 150mm (5.9") |
| Weight (lbs) | 5.63 |
| UOM | ea |
