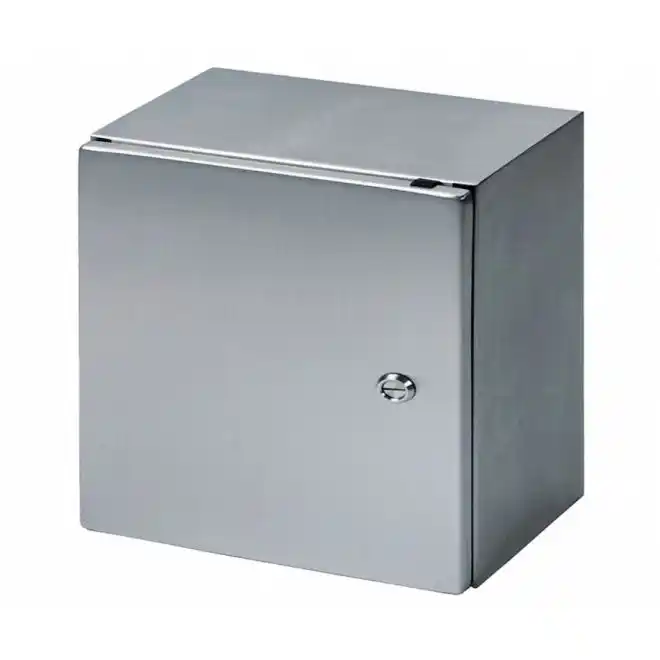

RITTAL 8018133 JB101006H4 10" 10" 6" NEMA 4X Box
SKU#:
366609
Rittal JB enclosure offers protection for dense wiring and sensitive small instruments. JB101006H4 8018133 hinged cover junction boxes combine the advantages of the AE and KL series at an economical cost. Features include 180 degree hinge and slotted insert quarter turn latch. Foamed-in-place gasket and a knife-edge perimeter add extra protection. Now you can get the industry's highest-quality enclosures in over 100 standard sizes, available in both carbon and stainless steel. Rittal JB101006H4 is comparable to Eurobex ESSCH101006.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018133 |
| Manufacturer Alternate Number | JB101006H4 |
| UPC | 639889832824 |
| Material | Stainless Steel |
| Surface Finish | Brushed |
| UL Rating Type | NEMA 4X |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, 180° Hinge Housing with Door |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Latching System | Slotted Insert Quarter Turn Latch |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 250mm (9.8") |
| Width (mm) | 250mm (9.8") |
| Depth (Length) (mm) | 150mm (5.9") |
| Weight (lbs) | 8.94 |
| UOM | ea |
