RITTAL 8018107 JB101006HC 10" 10" 6" NEMA 4 Box JB
SKU#:
366611
Rittal JB junction box enclosures provide the protection, flexibility and value that translate to reliable and lasting solutions for today's intensive "return on investment" business approach. Rittal engineers its junction boxes to be the best available anywhere in the world when it comes to form, function and value for the money. Readily available from Bolen's Control House in all of the most popular sizes, protection categories and configurations, unique design features like foamed-in-place gasketing and knife-edge perimeters are examples of Rittal's ability to provide innovative, durable, quality JB101006HC 8018107 enclosure solutions at affordable prices. Rittal JB101006HC is comparable to Hoffman A10106CH, Hammond Eclipse EJ10106, Ralston Vision IBOH-101006, Eurobex ESCHB101006, Rittal E10106CH.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018107 |
| Manufacturer Alternate Number | JB101006HC |
| UPC | 639889832633 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |

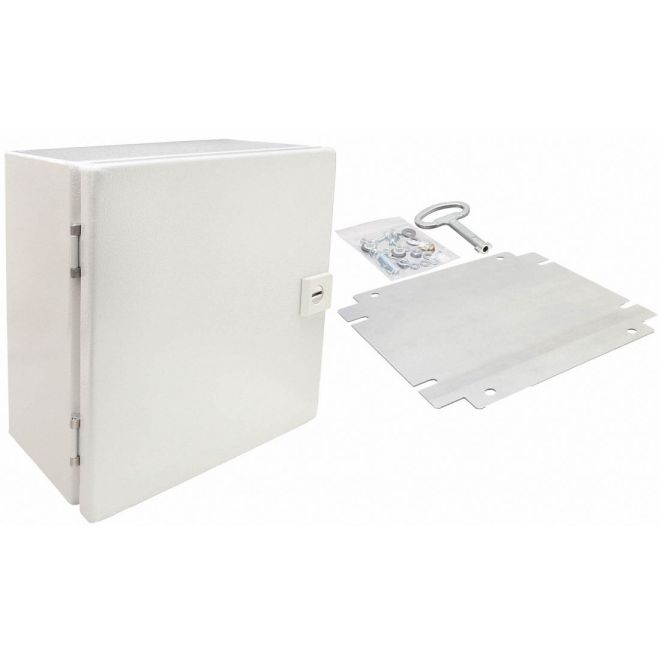

| Supply Includes | Mounting Plate, 180° Hinge Housing with Door |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Latching System | Slotted Insert Quarter Turn Latch |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 250mm (9.8") |
| Width (mm) | 250mm (9.8") |
| Depth (Length) (mm) | 150mm (5.9") |
| Weight (lbs) | 9.94 |
| UOM | ea |
