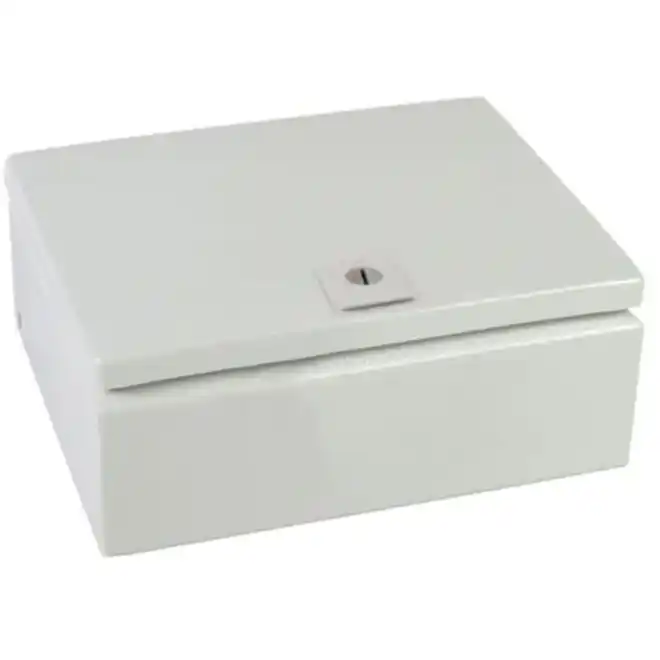

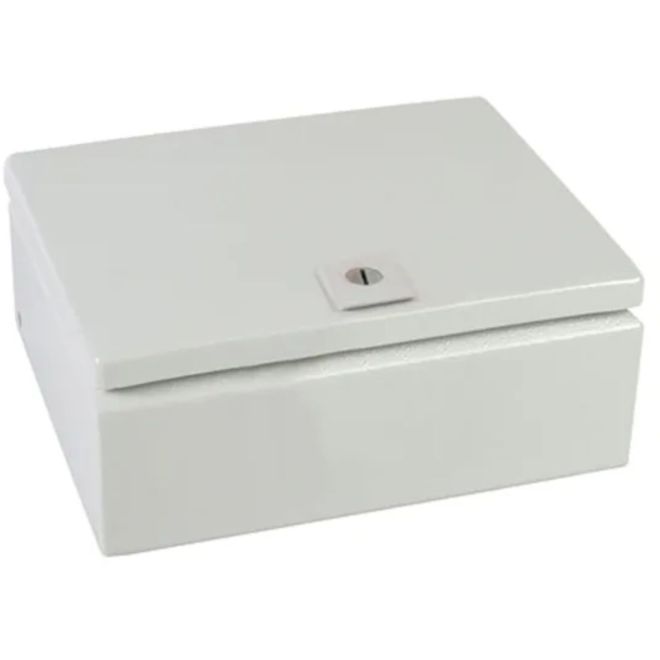

RITTAL 8018097 JB100804HC 10" 8" 4" NEMA 4 Box JB
SKU#:
364362
Rittal JB junction box enclosures provide the protection, flexibility and value that translate to reliable and lasting solutions for today's intensive "return on investment" business approach. Rittal engineers its junction boxes to be the best available anywhere in the world when it comes to form, function and value for the money. Readily available from Bolen's Control House in all of the most popular sizes, protection categories and configurations, unique design features like foamed-in-place gasketing and knife-edge perimeters are examples of Rittal's ability to provide innovative, durable, quality JB100804HC 8018097 enclosure solutions at affordable prices. Rittal JB100804HC is comparable to Hoffman A1008CHNF, Hammond Eclipse EJ1084, Ralston Vision IBOH-100804, Eurobex ESCHB100804, Rittal E1008CH.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018097 |
| Manufacturer Alternate Number | JB100804HC |
| UPC | 639889832589 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, 180° Hinge Housing with Door |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Latching System | Slotted Insert Quarter Turn Latch |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 250mm (9.8") |
| Width (mm) | 200mm (7.9") |
| Depth (Length) (mm) | 100mm (3.9") |
| Weight (lbs) | 5.95 |
| UOM | ea |
