RITTAL 8018121 JB060404HC 6" 4" 4" NEMA 4 Box JB
SKU#:
366593

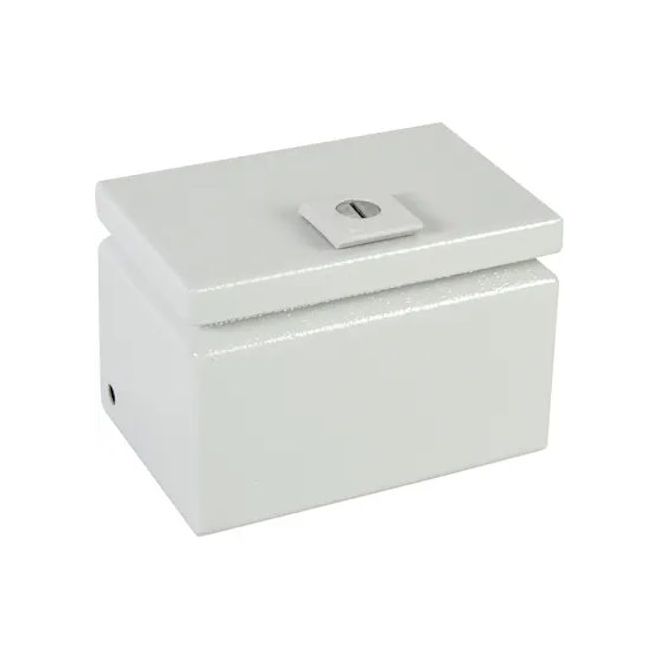

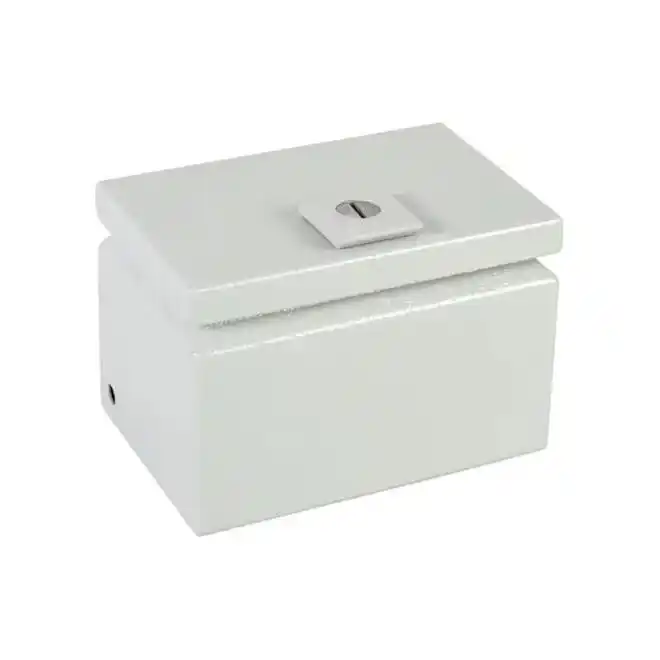

Rittal JB enclosure offers protection for dense wiring and sensitive small instruments. JB060404HC 8018121 hinged cover junction boxes combine the advantages of the AE and KL series at an economical cost. Features include 180 degree hinge and slotted insert quarter turn latch. Foamed-in-place gasket and a knife-edge perimeter add extra protection. Now you can get the industry's highest-quality enclosures in over 100 standard sizes, available in both carbon and stainless steel. Rittal JB060404HC is comparable to Hoffman A6044CH, Hammond Eclipse EJ644, Ralston Vision IBOH-060404, Eurobex ESCHB060404, Rittal E6044CH.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018121 |
| Manufacturer Alternate Number | JB060404HC |
| UPC | 639889832541 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, 180° Hinge Housing with Door |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Latching System | Slotted Insert Quarter Turn Latch |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 150mm (5.9") |
| Width (mm) | 100mm (3.9") |
| Depth (Length) (mm) | 100mm (3.9") |
| Weight (lbs) | 3.1 |
| UOM | ea |
