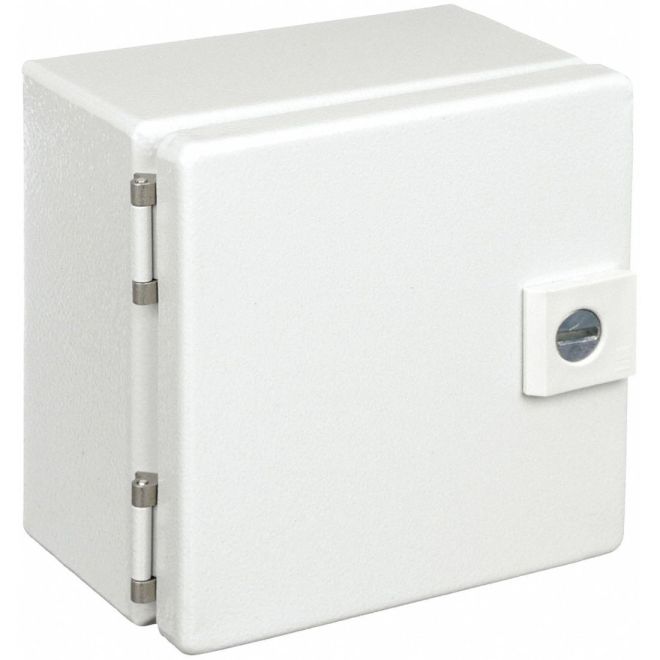

RITTAL 8018098 JB060604HC 6" 6" 4" NEMA 4 Box JB
SKU#:
364266
Rittal JB enclosure offers protection for dense wiring and sensitive small instruments. JB060604HC 8018098 hinged cover junction boxes combine the advantages of the AE and KL series at an economical cost. Features include 180 degree hinge and slotted insert quarter turn latch. Foamed-in-place gasket and a knife-edge perimeter add extra protection. Now you can get the industry's highest-quality enclosures in over 100 standard sizes, available in both carbon and stainless steel. Rittal JB060604HC is comparable to Hoffman A606CHNF, Hammond Eclipse EJ664, Ralston Vision IBOH-060604, Eurobex ESCHB060604, Rittal E6044CH.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8018098 |
| Manufacturer Alternate Number | JB060604HC |
| UPC | 639889832558 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4 |
| IP Rating | IP66 |
| Supply Includes | Mounting Plate, 180° Hinge Housing with Door |
| Material Thickness | Housing, Door, Mounting Plate: 1.5mm (0.06") |
| Latching System | Slotted Insert Quarter Turn Latch |
| Door Cover Style | Hinged |
| Number of Doors | 1 |
| Height (mm) | 150mm (5.9") |
| Width (mm) | 150mm (5.9") |
| Depth (Length) (mm) | 100mm (3.9") |
| Weight (lbs) | 3.94 |
| UOM | ea |
