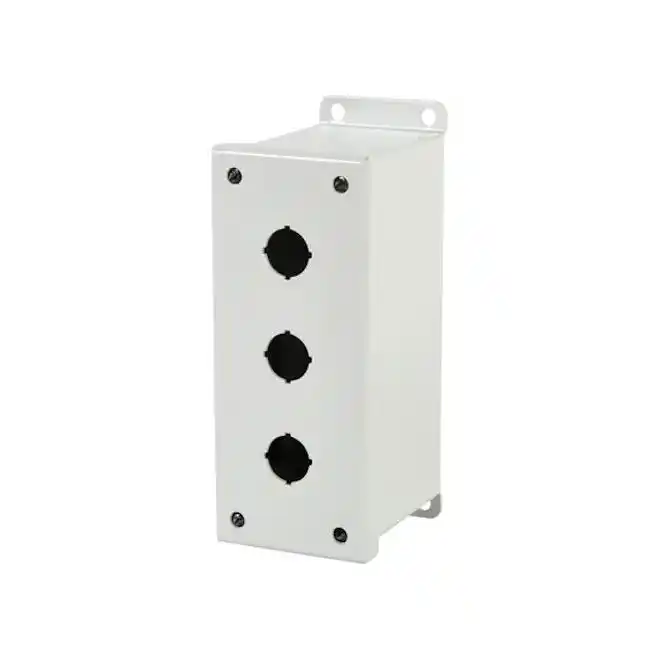

RITTAL 8017666 PB03225M1C 177mm 69mm 88mm Box
SKU#:
366703
Rittal NEMA rated PB series pushbutton box enclosure is designed for indoor use to house commercially available pushbuttons, selector switches, and pilot lights. PB03225M1C enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants. Rittal PB03225M1C is comparable to Stahlin CF3PB-22, Schneider Electric XAPG39503.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017666 |
| Manufacturer Alternate Number | PB03225M1C |
| UPC | 639889811560 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4, NEMA 12, NEMA 13 |
| IP Rating | IP55 |
| Supply Includes | Cover Screws, Wall Mounting Bracket |
| Door Cover Style | Lift-Off |
| Hole Diameter | 22.5mm |
| Number of Holes | 3 Cut-Out |
| Height (mm) | 177mm (7") |
| Width (mm) | 69mm (2.7") |
| Depth (Length) (mm) | 88mm (3.5") |
| Weight (lbs) | 3.59 |
| UOM | ea |
