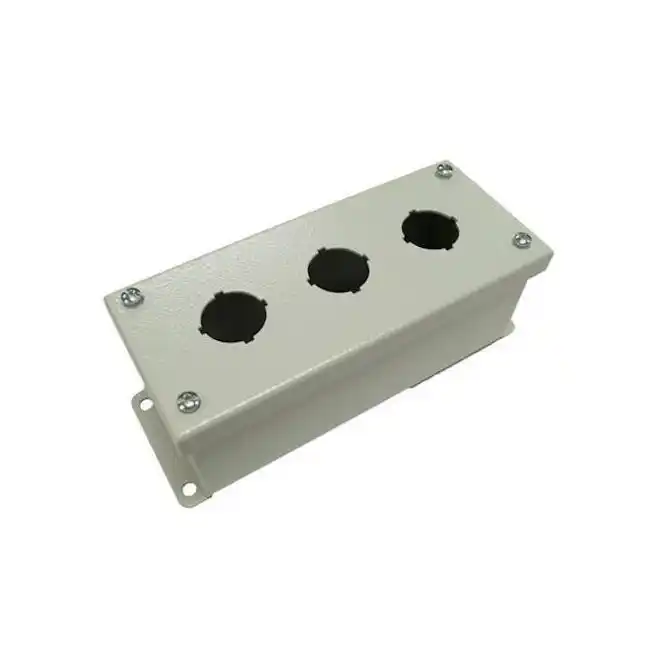

RITTAL 8017647 PB03305S1C 203mm 82mm 69mm Box
SKU#:
366707
Rittal NEMA rated PB series pushbutton box enclosure is designed for indoor use to house commercially available pushbuttons, selector switches, and pilot lights. PB03305S1C enclosure protects equipment from dirt, dust, sprayed water, oil, and coolants. Rittal PB03305S1C is comparable to Hoffman E3PB.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 8017647 |
| Manufacturer Alternate Number | PB03305S1C |
| UPC | 639889811379 |
| Material | Carbon Steel |
| Surface Finish | Powder-Coated |
| Color | RAL 7035 |
| UL Rating Type | NEMA 4, NEMA 12, NEMA 13 |
| IP Rating | IP55 |
| Supply Includes | Cover Screws, Wall Mounting Bracket |
| Door Cover Style | Lift-Off |
| Hole Diameter | 30.5mm |
| Number of Holes | 3 Cut-Out |
| Height (mm) | 203mm (8") |
| Width (mm) | 82mm (3.2") |
| Depth (Length) (mm) | 69mm (2.7") |
| Weight (lbs) | 3.59 |
| UOM | ea |
