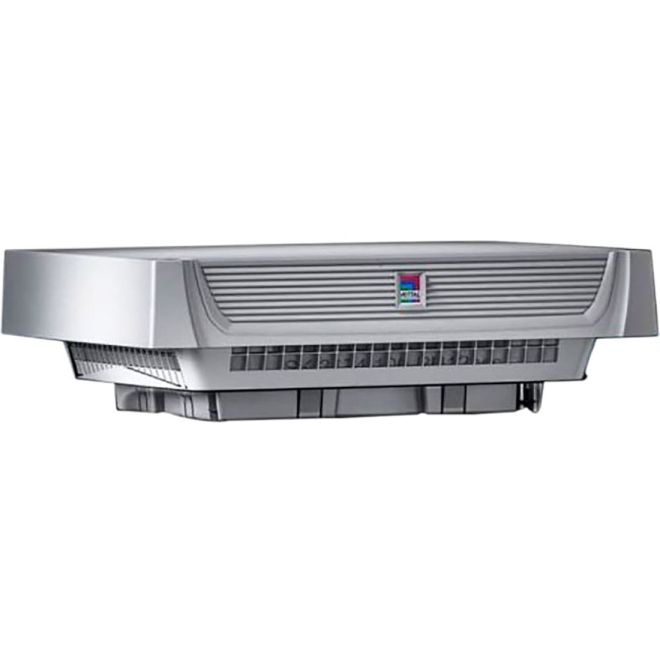

RITTAL 3139110 Roof-Mounted Fan, Roof Vent SK
SKU#:
506843
Rittal 3139110 new generation of roof-mounted fans is one system for all sizes: only one mounting cut-out is needed for all output categories. Air routing with minimal pressure losses ensures a high level of efficiency, while an innovative clamping attachment supports a high protection category of IP55.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3139110 |
| Manufacturer Alternate Number | SK 3139.110 |
| UPC | 639889884595 |
| Color | RAL 7035 |
| UL Rating Type | NEMA 12 |
| IP Rating | IP55 with Filter Mat, IP21 without Filter Mat |
| Supply Includes | Filter Mat |
| Miniature Circuit-Breaker/Fuse | 6A |
| Supply Voltage Range | 115V 1~ 50Hz/60Hz |
| Rated Current | At 50Hz: 0.43A, At 60Hz: 0.55A |
| Temperature Range | -30°C to +55°C |
| Air Throughput Unimpeded | 500m<sup>3</sup>/h (294.3 cfm) |
| Unimpeded Air Flow without Filter Mat | 500m<sup>3</sup>/h / 525m<sup>3</sup>/h |
| Unimpeded Air Flow with Filter Mat | 417m<sup>3</sup>/h / 446m<sup>3</sup>/h |
| Rated Power Pel | At 50Hz: 49W, At 60Hz: 62W |
| Cut-Out Dimensions | Width: 258mm (10"), Depth: 258mm (10") |
| Type | Fan |
| Height (mm) | 133mm (5.2") |
| Width (mm) | 400mm (16") |
| Depth (Length) (mm) | 400mm (16") |
| Weight (lbs) | 11.38 |
| UOM | ea |
