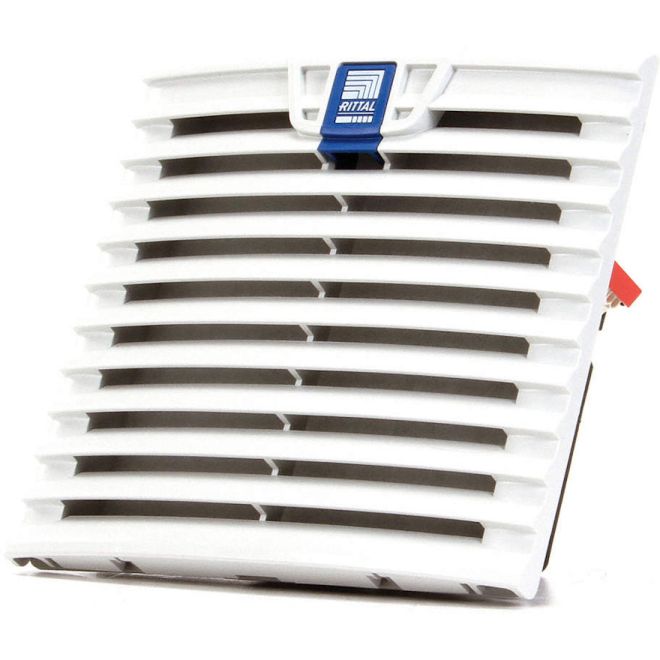

RITTAL 3239110 TopTherm Filter Fan Unit 3239.110
SKU#:
417040
Rittal 3239110 is a complete fan unit for tool-free mounting on surfaces. Air throughput from 105/120 m3/h, protection category IP 54 as standard. Rittal 3239110 is comparable to Rittal SK 3323115, SK 3323117.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3239110 |
| Manufacturer Alternate Number | SK 3239.110 |
| UPC | 639889858312 |
| Color | RAL 7035 |
| UL Rating Type | with Hose-Proof Hood: NEMA 3R, NEMA 4, NEMA 4X, NEMA 3; with Filter and Hose-Proof Hood: NEMA 12 |
| IP Rating | with Filter and Hose-Proof Hood: IP56, with Filter and Additional Fine Filter Mat: IP55 |
| Supply Includes | Filter Mat |
| Miniature Circuit-Breaker/Fuse | 2A |
| Supply Voltage Range | 115V 1~ 50Hz/60Hz |
| Rated Current | At 50Hz: 0.24A, At 60Hz: 0.22A |
| Temperature Range | -10°C to +55°C |
| Unimpeded Air Flow with Filter Mat | 87/100m<sup>3</sup>/h |
| Rated Power Pel | At 50Hz: 19W, At 60Hz: 18W |
| Cut-Out Dimensions | Height: 177mm (7"), Width: 177mm (7") |
| Type | Fan |
| Height (mm) | 204mm (8") |
| Width (mm) | 204mm (8") |
| Depth (Length) (mm) | 24mm (0.94") |
| Weight (lbs) | 2.89 |
| UOM | ea |
