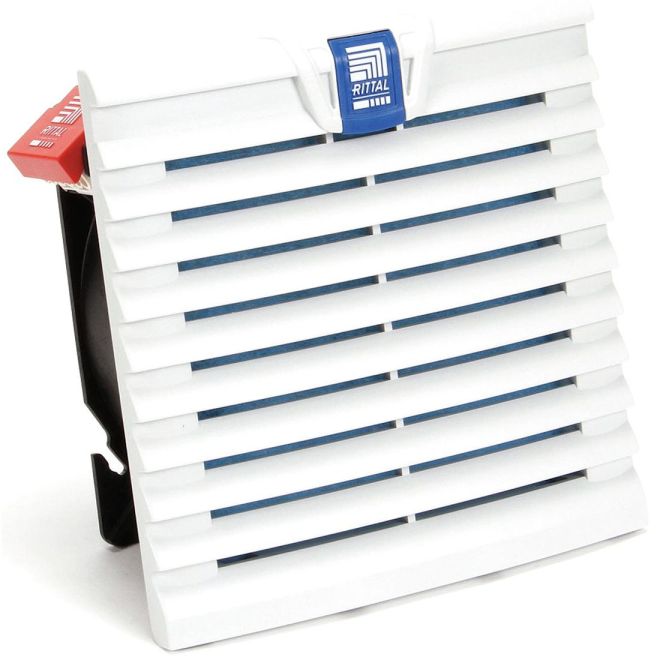

RITTAL 3238124 TopTherm Filter Fan Unit 3238.124
SKU#:
420916
Rittal 3238124 is a complete fan unit for tool-free mounting on surfaces. Air throughput from 55/66 m3/h, protection category IP 54 as standard. Rittal 3238124 is comparable to Rittal SK 3322027
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3238124 |
| Manufacturer Alternate Number | SK 3238.124 |
| UPC | 639889858282 |
| Color | RAL 7035 |
| UL Rating Type | with Hose-Proof Hood: NEMA 3R, NEMA 4, NEMA 4X, NEMA 3; with Filter and Hose-Proof Hood: NEMA 12 |
| IP Rating | with Filter and Hose-Proof Hood: IP56, with Filter and Additional Fine Filter Mat: IP54 |
| Supply Includes | Filter Mat |
| Miniature Circuit-Breaker/Fuse | 2A |
| Supply Voltage Range | 24VDC |
| Rated Current | 0.24A |
| Temperature Range | -15°C to +55°C |
| Unimpeded Air Flow with Filter Mat | 43/50m<sup>3</sup>/h |
| Cut-Out Dimensions | Height: 124mm (4.9"), Width: 124mm (4.9") |
| Type | Fan |
| Height (mm) | 148.5mm (5.8") |
| Width (mm) | 148.5mm (5.8") |
| Depth (Length) (mm) | 16mm (0.63") |
| Weight (lbs) | 1.76 |
| UOM | ea |
