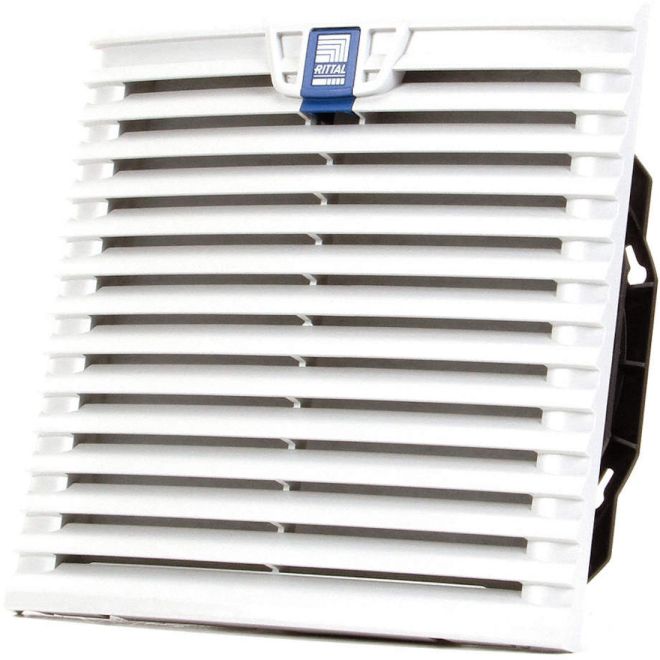

RITTAL 3240110 TopTherm Filter Fan Unit 3240.110
SKU#:
417480
Rittal 3240110 is a complete fan unit for tool-free mounting on surfaces. Air throughput from 180/160 m3/h, protection category IP 54 as standard.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3240110 |
| Manufacturer Alternate Number | SK 3240.110 |
| UPC | 639889858350 |
| Color | RAL 7035 |
| UL Rating Type | with Hose-Proof Hood: NEMA 3R, NEMA 4, NEMA 4X, NEMA 3; with Filter and Hose-Proof Hood: NEMA 12 |
| IP Rating | with Filter and Hose-Proof Hood: IP56, with Filter and Additional Fine Filter Mat: IP55 |
| Supply Includes | Filter Mat |
| Miniature Circuit-Breaker/Fuse | 4A |
| Supply Voltage Range | 115V 1~ 50Hz/60Hz |
| Rated Current | At 50Hz: 0.42A, At 60Hz: 0.38A |
| Temperature Range | -30°C to +55°C |
| Air Throughput Unimpeded | 180m<sup>3</sup>/h (105.9cfm), 160m<sup>3</sup>/h (94.2cfm) |
| Unimpeded Air Flow with Filter Mat | 138/121m<sup>3</sup>/h |
| Rated Power Pel | At 50Hz: 35W, At 60Hz: 34W |
| Cut-Out Dimensions | Height: 224mm (8.8"), Width: 224mm (8.8") |
| Type | Fan |
| Height (mm) | 255mm (10") |
| Width (mm) | 255mm (10") |
| Depth (Length) (mm) | 25mm (0.98") |
| Weight (lbs) | 4.59 |
| UOM | ea |
