RITTAL 3243110 TopTherm Filter Fan Unit 3243.110
SKU#:
417618

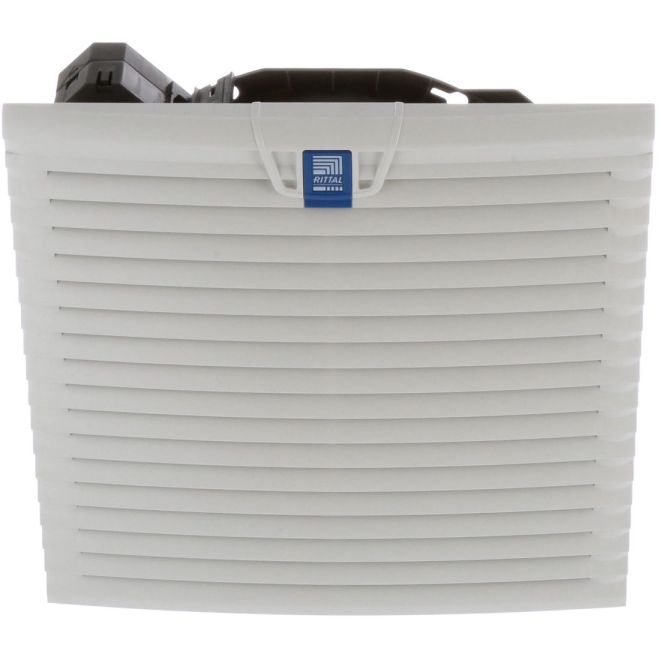

Rittal 3243110 is a complete fan unit for tool-free mounting on surfaces. Air throughput of 550/600 m3/h, protection category IP 54 as standard. Rittal 3243110 is comparable to Rittal SK 3326117.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3243110 |
| Manufacturer Alternate Number | SK 3243.110 |
| UPC | 639889858428 |
| Color | RAL 7035 |
| UL Rating Type | with Hose-Proof Hood: NEMA 3R, NEMA 4, NEMA 4X, NEMA 3; with Filter and Hose-Proof Hood: NEMA 12 |
| IP Rating | with Filter and Hose-Proof Hood: IP56, with Filter and Additional Fine Filter Mat: IP55 |
| Supply Includes | Filter Mat |
| Miniature Circuit-Breaker/Fuse | 6A |
| Supply Voltage Range | 115V 1~ 50Hz/60Hz |
| Rated Current | At 50Hz: 0.78A, At 60Hz: 0.8A |
| Temperature Range | -30°C to +55°C |
| Air Throughput Unimpeded | 550m<sup>3</sup>/h (323.7cfm), 600m<sup>3</sup>/h (353.1cfm) |
| Unimpeded Air Flow with Filter Mat | 465/510m<sup>3</sup>/h |
| Rated Power Pel | At 50Hz: 75W, At 60Hz: 90W |
| Cut-Out Dimensions | Height: 292mm (11"), Width: 292mm (11") |
| Type | Fan |
| Height (mm) | 323mm (13") |
| Width (mm) | 323mm (13") |
| Depth (Length) (mm) | 25mm (0.98") |
| Weight (lbs) | 8.89 |
| UOM | ea |
