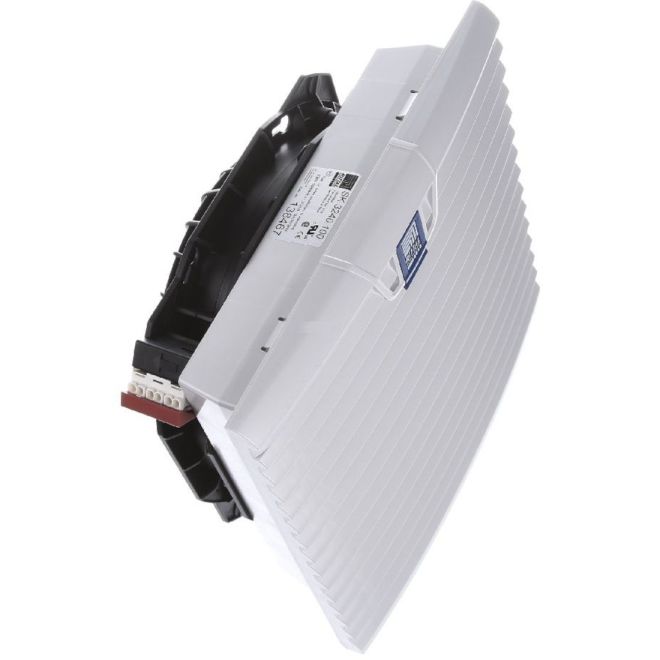

RITTAL 3240100 TopTherm Filter Fan Unit 3240.100
SKU#:
506892
The fan-and-filter unit in conjunction with the corresponding Rittal 3240100 outlet filters is used to dissipate heat loss from enclosures, ventilate the enclosure and protect temperature-sensitive components. This is achieved via the direct infeed of ambient air, the temperature of which must be less than the admissible enclosure interior temperature. The system is fitted into prepared cut-outs.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3240100 |
| Manufacturer Alternate Number | SK 3240.100 |
| UPC | 639889858343 |
| Color | RAL 7035 |
| UL Rating Type | with Filter and Hose-Proof Hood: NEMA 3, NEMA 3R, NEMA 4, NEMA 4X; with Standard Filter and Additional Fine Filter Mat: NEMA 12 |
| IP Rating | with Filter and Hose-Proof Hood: IP66 ; with Standard Filter and Additional Fine Filter Mat: IP55 |
| Supply Includes | Filter Mat |
| Miniature Circuit-Breaker/Fuse | 2A |
| Supply Voltage Range | 230V 1~ 50Hz/60Hz |
| Rated Current | At 50Hz: 0.21A, At 60Hz: 0.19A |
| Temperature Range | -30°C to +55°C |
| Unimpeded Air Flow with Filter Mat | 138/121m<sup>3</sup>/h |
| Rated Power Pel | At 50Hz: 35W, At 60Hz: 34W |
| Type | Fan |
| Height (mm) | 255mm (10") |
| Width (mm) | 255mm (10") |
| Depth (Length) (mm) | 25mm (0.98") |
| Weight (lbs) | 5.98 |
| UOM | ea |
