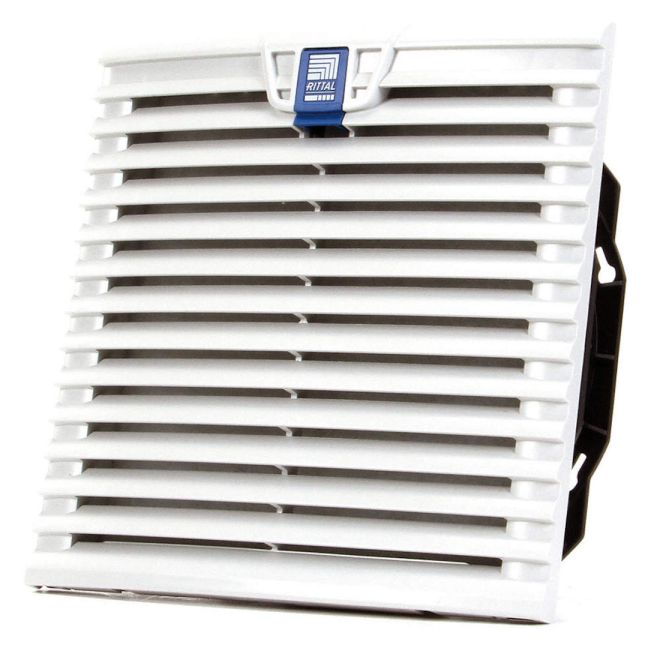

RITTAL 3241110 TopTherm Filter Fan Unit 3241.110
SKU#:
417501
Rittal 3241110 is a complete fan unit for tool-free mounting on surfaces. Air throughput from 230/250 m3/h, protection category IP 54 as standard. Rittal 3241110 is comparable to Hoffman SF1016414, HF1016414.
| Brand | RITTAL |
|---|---|
| Manufacturer Part Number | 3241110 |
| Manufacturer Alternate Number | SK 3241.110 |
| UPC | 639889858398 |
| Color | RAL 7035 |
| UL Rating Type | with Hose-Proof Hood: NEMA 3R, NEMA 4, NEMA 4X, NEMA 3; with Filter and Hose-Proof Hood: NEMA 12 |
| IP Rating | with Filter and Hose-Proof Hood: IP56, with Filter and Additional Fine Filter Mat: IP55 |
| Supply Includes | Filter Mat |
| Miniature Circuit-Breaker/Fuse | 4A |
| Supply Voltage Range | 115V 1~ 50Hz/60Hz |
| Rated Current | At 50Hz: 0.52A, At 60Hz: 0.48A |
| Temperature Range | -30°C to +55°C |
| Air Throughput Unimpeded | 230m<sup>3</sup>/h (135.4cfm), 250m<sup>3</sup>/h (147.1cfm) |
| Unimpeded Air Flow with Filter Mat | 183/205m<sup>3</sup>/h |
| Rated Power Pel | At 50Hz: 40W, At 60Hz: 42W |
| Cut-Out Dimensions | Height: 224mm (8.8"), Width: 224mm (8.8") |
| Type | Fan |
| Height (mm) | 255mm (10") |
| Width (mm) | 255mm (10") |
| Depth (Length) (mm) | 25mm (0.98") |
| Weight (lbs) | 5.98 |
| UOM | ea |
